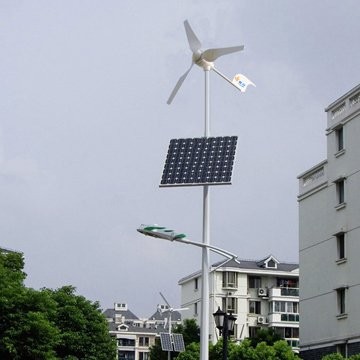

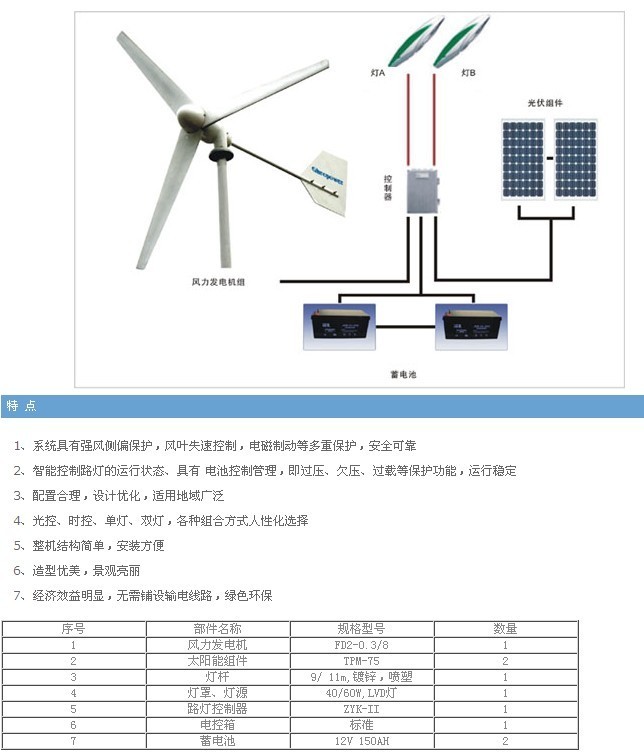

wind-solar hybrid system wind generator






Detailed Product Description


wind solar
1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

DSC08721-14



wind solar

Main technical data

Rated power (W) 400
Maximum output power (W) 600
Charging voltage (V) DC 12
Blade quantity 3
Blade material Nylon
Blade diameter (ft.) 4    (1.25m)
Start-up wind speed (mph) 6    (2.5m/s)
Rated wind speed (mph) 25  (11.0m/s)
Rated rotating rate (r/min) 800
Wind energy utilizing ratio (Cp) 0.4
Generator output Frequency conversion AC
Output AC frequency (Hz) 0~300
Rated charging current (A) 33.3
The maximum charging current (in a short time) (A) 45
Generator efficiency >0.8
Tower diameter (in.) ø2.6  (ø65mm)
Tower height (ft.) 30  (9m)
Generator weight (lb) 12  (5.5kg)
Suggested Battery (Ah) 100/120
Road
Type 		wind
generator
(W) 		Solar Panel Fits LED
light 		Brightness illuminance ingress protection glare
limited
Solar(W)-Single Lamp Solar(W)-Double LED Lamp Power
(W) 		average luminance   Lav (Cd/㎡)  uniformity          Lmin/Lav average illuminance
Eav(Lx) 		Uniformity        Emin/Eav
Sub-Primary Road 400 60-80 120-150 30-45 0.5 0.35 8 0.35 IP65
Branch Road 400 50-70 120-150 22-36 0.3 0.3 5 0.3 IP65 forbid using full cut-off  luminaire
Scenic
Region&
park&Yard 		400 50-70 80-120 22-36 N/A N/A 1--2 N/A IP65 forbid using full cut-off  luminaire
