Hummer 5KW Wind Turbine For Household






Hummer 5KW Wind Turbine For Household

Hummer 5KW Wind Turbine For Household

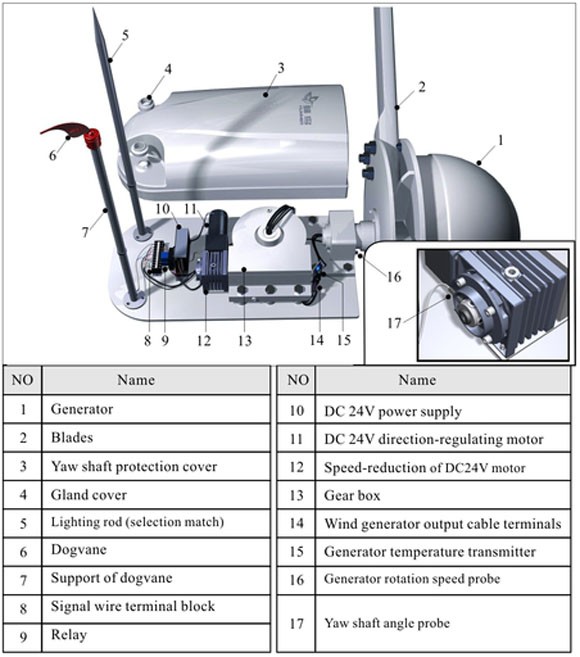

5KW Wind Turbine For Household Structure

5KW Wind Turbine For Household Structure

5KW Wind Turbine For Household Structure

Hummer manufactures and offers advanced 5KW Wind Turbine specifically designed for

residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 5KW Wind

Turbine have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on 5KW Wind Turbine

such as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

Hummer 5KW Wind Turbine For Household curve

Hummer 5KW Wind Turbine For Household curve

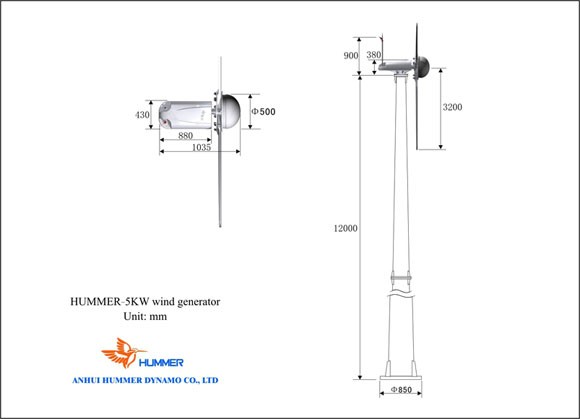

H6.4-5KW Wind Turbine For Household specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф6.4m

Rated Power

5KW at 10m/s

Maximum Output Power

7.5KW at 14.5m/s

Battery Bank Voltage

240 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.8

Wind Energy Utilizing Ratio

0.40 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

147 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking

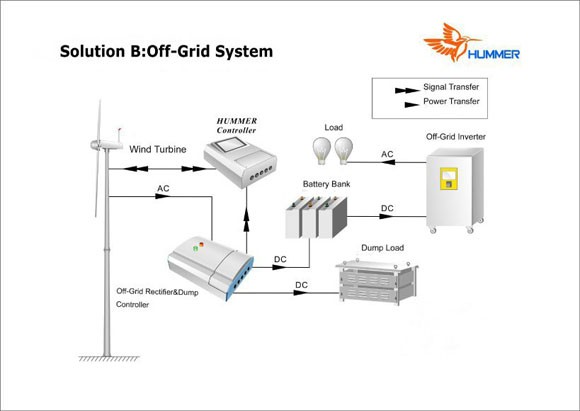

How 5KW Wind Turbine For Household works

How 5KW Wind Turbine For Household works
