Hummer 50KW Wind Turbine For Sale

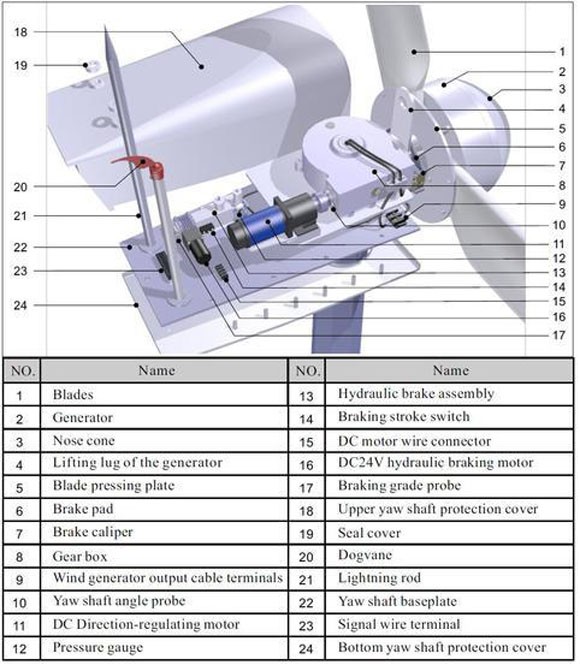

50KW Wind Turbine Structure
Hummer manufactures and offers advanced 50KW Wind Turbine specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. Due to its advanced technologies, refined materials and unique design,
50kw small wind turbine's wind energy utilization factor is as high as 0.42, while
generator efficiency is 0.92. It is excellent in generation,stable in output and reliable in
practice. Hummer products are third party certified and during the past 10 years, Hummer
50KW Wind Turbine have been exported to 91 countries and areas, such as
the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more
information on 50KW Wind Turbine System such as users manuals, data sheet, PDF
documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300

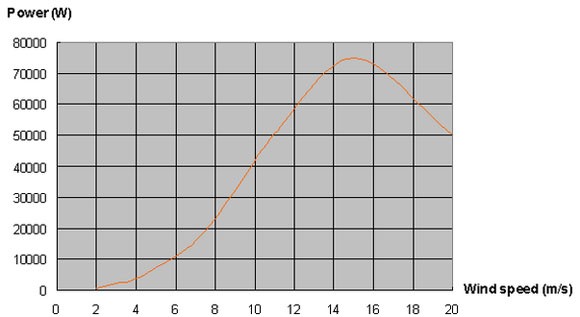

50KW Wind Turbine curve
H12.0-50KW Specifications
Configuration
3 Blades, Horizontal axis, Upwind
Rotor Diameter
Ф12.0 m / 39.4 ft
Swept Area
113.10 m2 / 1217.4 ft2
Direction of Rotation
Clockwise looking upwind
Blade Material
Fiberglass reinforced composite
Rated Power
50 kW @ 12m/s / 26.8 mph
Maximum Output Power
54 kW @ 20m/s / 44.7 mph
Battery Bank Voltage
400 Vdc
System Output Voltage
380 Vac
Cut-in Wind Speed
3 m/s / 6.7 mph
Rated rotating rate
140 r/min
Working Wind Speed
3-25 m/s / 6.7-82.8 mph
Survival Wind Speed
50 m/s / 164 mph
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight
1237 kg / 2727.1 lbs
Generator Efficiency
>0.92
Wind Energy Utilizing Ratio
0.42 Cp
Energy monitoring & User control
Siemens PLC controller with touch screen
Gearbox
None, Direct drive with front generator design
Over Speed Regulation
Auto Yawing & Hydraulic Braking
Shutting Down Method
Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty
2 years for generator and 1 year for other parts

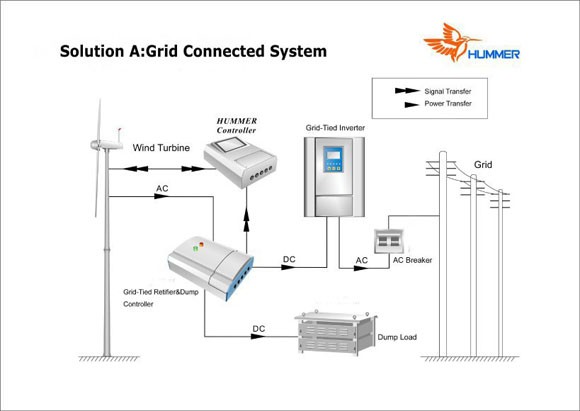

How 50KW Wind Turbine works
