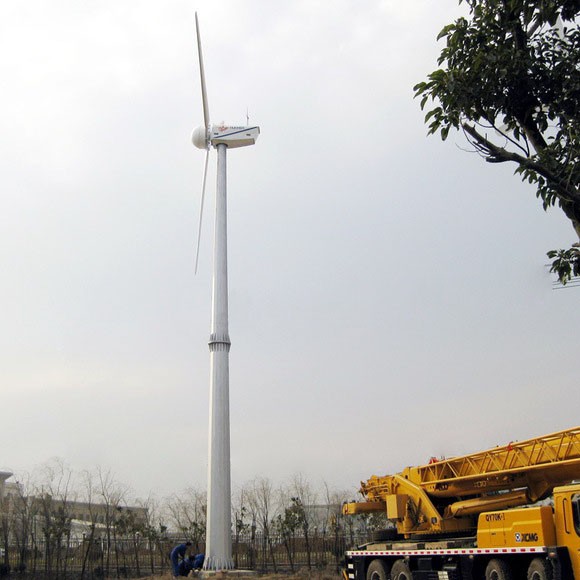

Hummer 50KW Wind Turbine For Household






Hummer 50KW Wind Turbine For Household

Hummer 50KW Wind Turbine For Household

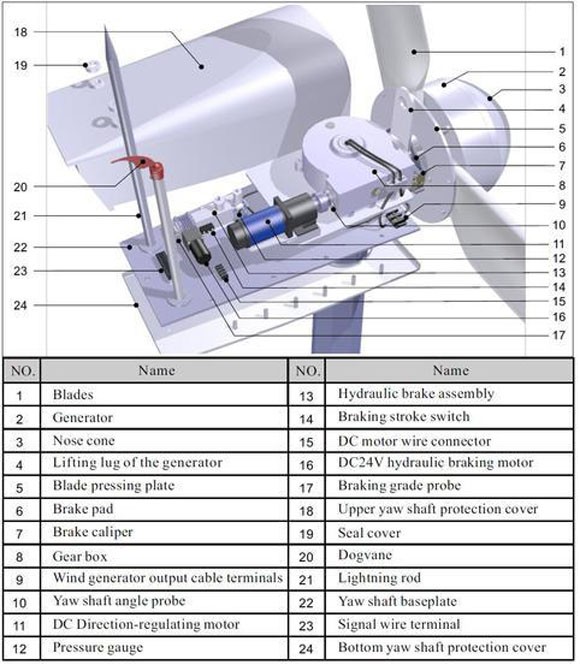

50KW Wind Turbine For Household Structure

50KW Wind Turbine For Household Structure

Hummer manufactures and offers advanced 50KW Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Due to its advanced technologies, refined materials and unique design,

50kw small wind turbine's wind energy utilization factor is as high as 0.42, while

generator efficiency is 0.92. It is excellent in generation,stable in output and reliable in

practice. Hummer products are third party certified and during the past 10 years, Hummer

50KW Wind Turbine For Household have been exported to 91 countries and areas, such as

the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more

information on 50KW Household Wind Turbine such as users manuals, data sheet, PDF

documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

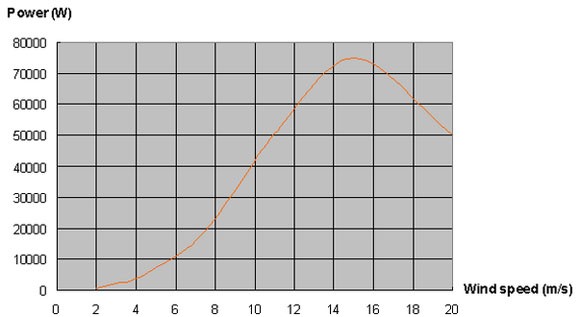

50KW Wind Turbine For Household curve

50KW Wind Turbine For Household curve

H12.0-50KW Household Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф12.0m

Rated Power

50KW at 11m/s

Maximum Output Power

75KW at 15m/s

Battery Bank Voltage

400 Vdc

System Output Voltage

380 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.92

Wind Energy Utilizing Ratio

0.42 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

1200 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing & Hydraulic Braking

Shutting Down Method

Manual & Automatic electromagnetism Braking & Hydraulic Braking

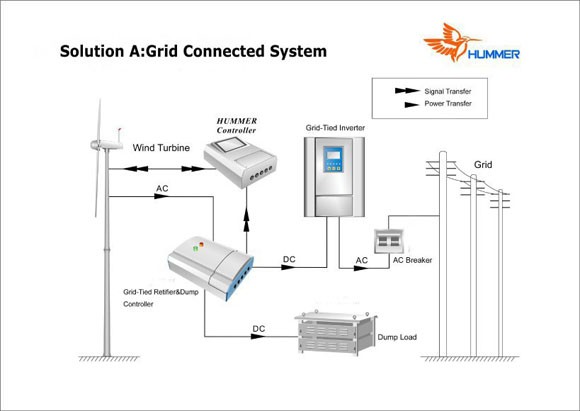

How 50KW Wind Turbine For Household works

How 50KW Wind Turbine For Household works
