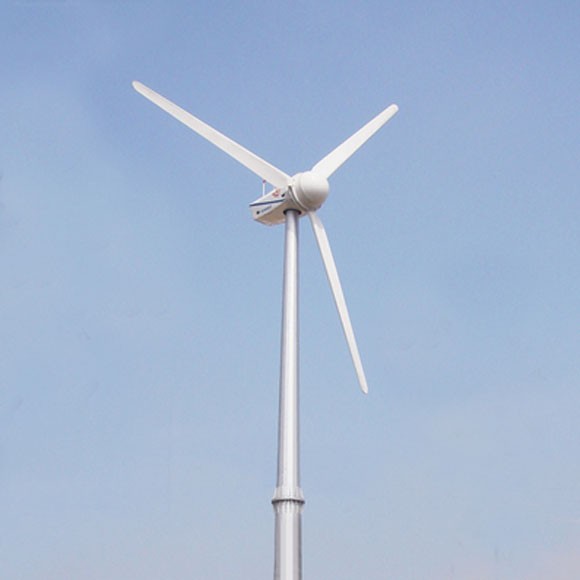

Hummer 50KW Wind Generator Cost

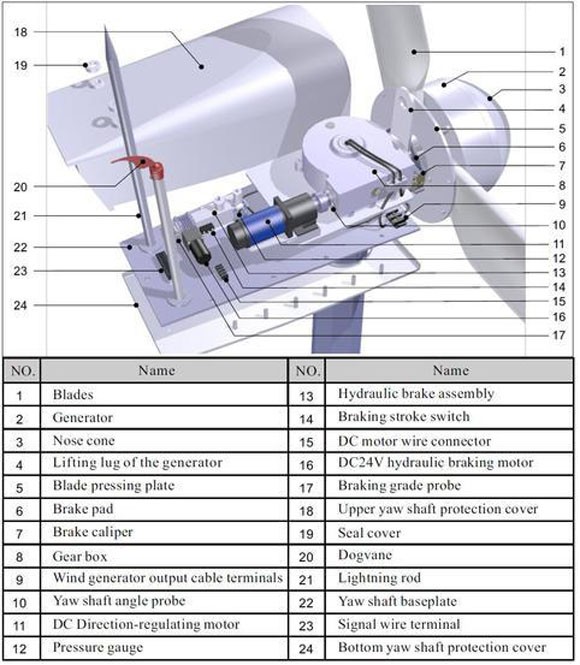

50KW Wind Generator Structure

Hummer manufactures and offers advanced 50KW Wind Generator specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. Due to its advanced technologies, refined materials and unique design,
50kw wind generator's wind energy utilization factor is as high as 0.42, while
generator efficiency is 0.92. Our products are third party certified and during the past 10
years, Hummer 50KW Wind Turbine System have been exported to 91 countries and areas,
such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.
For more information on 50KW Wind Generator Cost such as users manuals, data sheet,
PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300

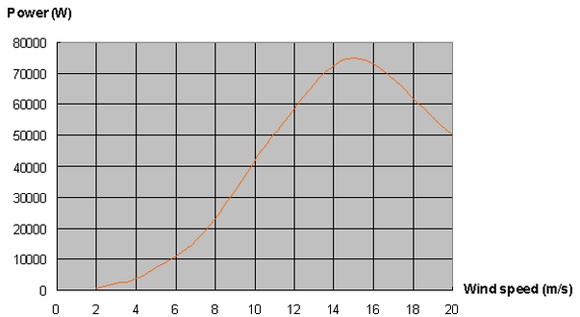

50KW Wind Generator curve






					H12.0-50KW Specifications




					Configuration


					3 Blades, Horizontal axis, Upwind




					Rotor Diameter


					Ф12.0 m / 39.4 ft




					Swept Area


					113.10 m2 / 1217.4 ft2




					Direction of Rotation


					Clockwise looking upwind




					Blade Material


					Fiberglass reinforced composite




					Rated Power


					50 kW @ 12m/s / 26.8 mph




					Maximum Output Power


					54 kW @ 20m/s / 44.7 mph




					Battery Bank Voltage


					400 Vdc




					System Output Voltage


					380 Vac




					Cut-in Wind Speed


					3 m/s / 6.7 mph




					Rated rotating rate


					140 r/min




					Working Wind Speed


					3-25 m/s / 6.7-82.8  mph




					Survival Wind Speed


					50 m/s / 164 mph




					Alternator


					Permanent magnet alternator, SCF technology




					Alternator Weight


					1237 kg / 2727.1 lbs




					Generator Efficiency


					>0.92




					Wind Energy Utilizing Ratio


					0.42 Cp




					Energy monitoring & User control


					Siemens PLC controller with touch screen




					Gearbox


					None, Direct drive with front generator design




					Over Speed Regulation


					Auto Yawing & Hydraulic Braking




					Shutting Down Method


					Manual & Automatic electromagnetism Braking & Hydraulic Braking




					Warranty


					2 years for generator and 1 year for other parts




					Shutting Down Method


					Manual & Automatic electromagnetism Braking & Hydraulic Braking





					Warranty


					2 years for generator and 1 year for other parts

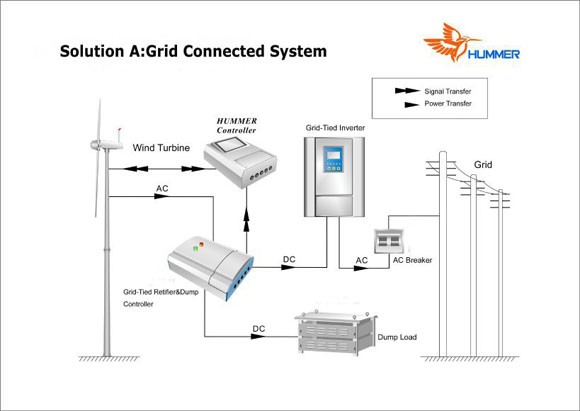

How 50KW Wind Generator works
