Hummer 500W Micro Wind Turbine

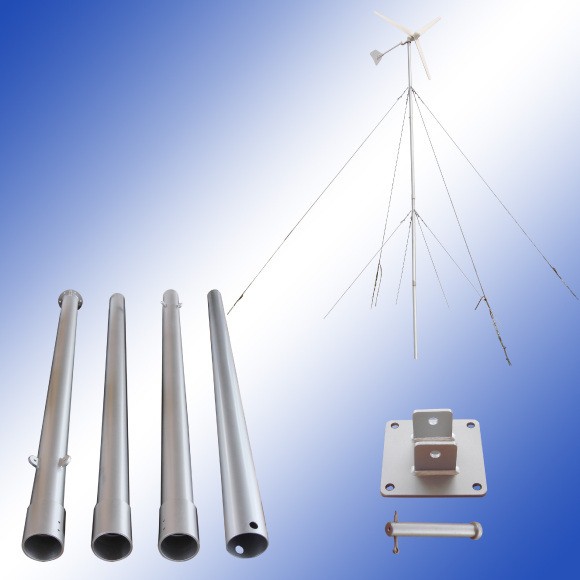

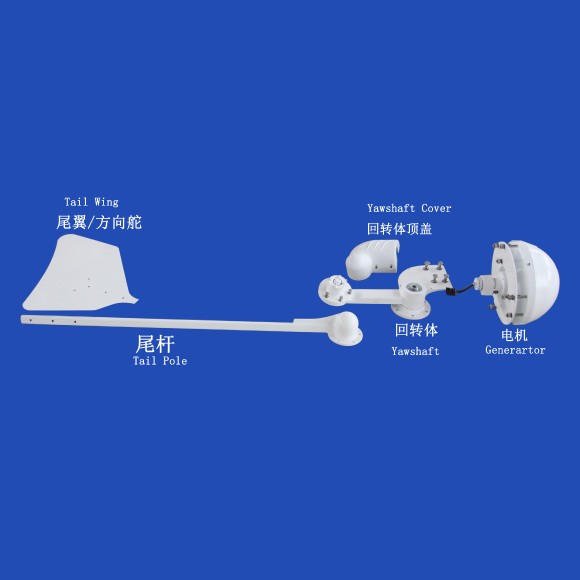

Hummer 500W Micro Wind Turbine Structure
Hummer manufactures and offers advanced 500W Micro Wind Turbine specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. Our products are third party certified and during the past 10 years,
500W Micro Wind Turbine have been exported to 91 countries and areas, such as the
USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more
information on 500W Micro Wind Turbine such as users manuals, data sheet, PDF
documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
Hummer 500W Micro Wind Turbine curve
H2.7-500W Micro Wind Turbine specifications |
|
Configuration |
3 Blades, Horizontal axis, upwind |
Rotor Diameter |
Ф2.7m |
Rated Power |
500W at 7m/s |
Maximum Output Power |
1 kW at 11m/s |
Battery Bank Voltage |
24 Vdc |
System Output Voltage |
110/220 Vac |
Cut-in Wind Vpeed |
3 m/s |
Working Wind Speed |
3-25 m/s |
Survival Wind Speed |
50 m/s |
Generator Efficiency |
>0.78 |
Wind Energy Utilizing Ratio |
0.48 Cp |
Alternator |
Permanent magnet alternator, SCF technology |
Alternator Weight (kg) |
6.5 kg |
Gearbox |
None, Direct drive, front generator design |
Blade Material |
Fiberglass reinforced composite |
Over Speed Regulation |
Passive furling tail design |
Shutting Down Method |
Manual & Automatic electromagnetism Braking |

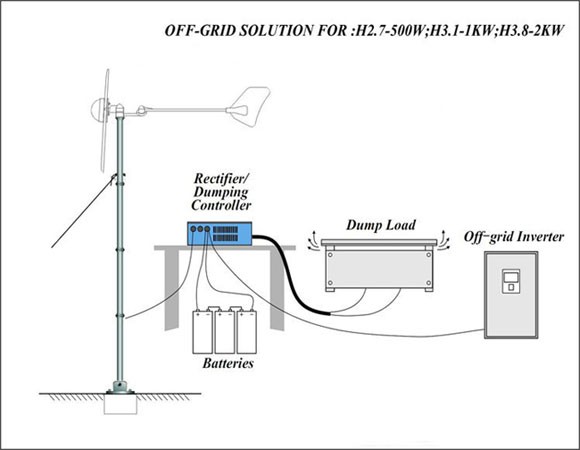

How 500W Micro Wind Turbine works
