Hummer 3KW Micro Wind Turbine

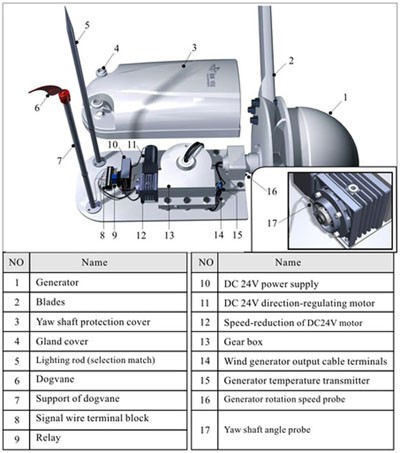

3KW Micro Wind Turbine Structure
Hummer manufactures and offers advanced 3KW Micro Wind Turbine specifically designed
for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. Our products are third party certified and during the past 10 years,
Hummer 3KW Micro Wind Turbine have been exported to 91 countries and areas, such
as the USA, Canada, Australia, Germany, the UK,Italy, France, India, Spain etc. For
more information on Hummer 3KW Micro Wind Turbine such as users manuals, data sheet,
PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
Hummer 3KW Micro Wind Turbine curve
H4.6-3KW Micro Wind Turbine specifications |
|
Configuration |
3 Blades, Horizontal axis, upwind |
Rotor Diameter |
Ф4.6m |
Rated Power |
3KW at 10m/s |
Maximum Output Power |
4.5KW at 15m/s |
Battery Bank Voltage |
180 Vdc |
System Output Voltage |
110/220 Vac |
Cut-in Wind Vpeed |
2.5 m/s |
Working Wind Speed |
3-25 m/s |
Survival Wind Speed |
50 m/s |
Generator Efficiency |
>0.8 |
Wind Energy Utilizing Ratio |
0.40 Cp |
Energy Monitoring & User Control |
Siemens PLC controller with touch screen |
Alternator |
Permanent magnet alternator, SCF technology |
Alternator Weight (kg) |
71.8 kg |
Gearbox |
None, Direct drive, front generator design |
Blade Material |
Fiberglass reinforced composite |
Over Speed Regulation |
Auto Yawing |
Shutting Down Method |
Manual & Automatic electromagnetism Braking |

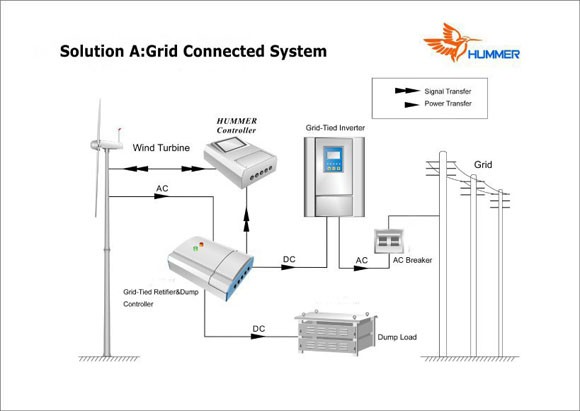

How 3KW Micro Wind Turbine works
