Hummer 30KW Wind Turbine For Farm

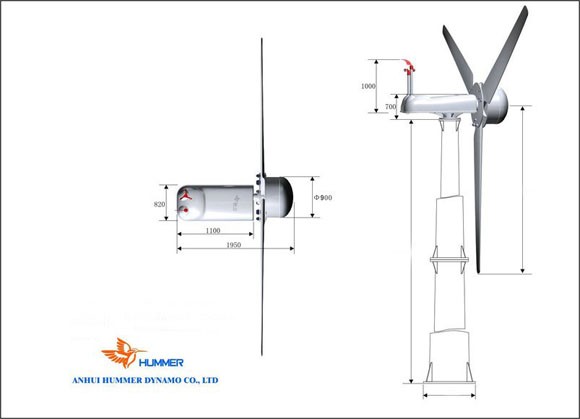

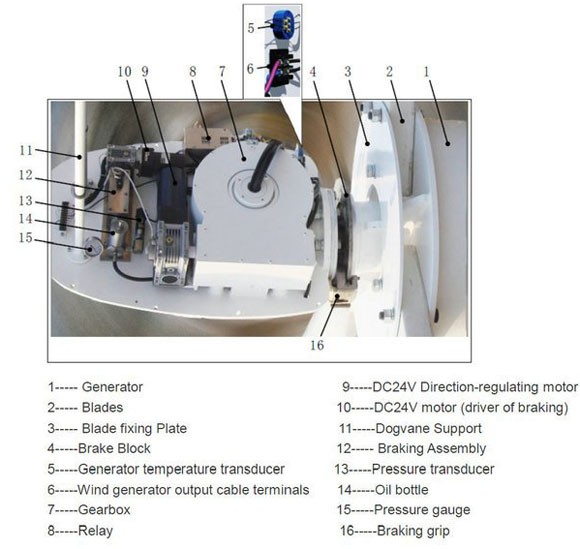

30KW Farm Wind Turbine Structure
Hummer manufactures and offers advanced 30KW Wind Turbine specifically designed
for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,
etc. Our products are third party certified and during the past 10 years, Hummer 30KW
Wind Turbine For Farm have been exported to 91 countries and areas, such as the USA,
Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on
30KW Farm Wind Turbine such as users manuals, data sheet, PDF documents,
certifications please email us sales@allwindturbine.com or call 086 551 65314300
30KW Wind Turbine For Farm curve
H10.0-30KW Specifications
Configuration
3 Blades, Horizontal axis, Upwind
Rotor Diameter
Ф10.0 m / 32.8 ft
Swept Area
78.54 m2 / 845.4 ft2
Direction of Rotation
Clockwise looking upwind
Blade Material
Fiberglass reinforced composite
Rated Power
30 kW @ 11m/s / 24.6 mph
Maximum Output Power
33 kW @ 20m/s / 44.7 mph
Battery Bank Voltage
360 Vdc
System Output Voltage
380 Vac
Cut-in Wind Speed
3 m/s / 6.7 mph
Rated rotating rate
160 r/min
Working Wind Speed
3-25 m/s / 6.7-82.7 mph
Survival Wind Speed
50 m/s / 164 mph
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight
824 kg / 1816.6 lbs
Generator Efficiency
>0.92
Wind Energy Utilizing Ratio
0.42 Cp
Energy monitoring & User control
Siemens PLC controller with touch screen
Gearbox
None, Direct drive with front generator design
Over Speed Regulation
Auto Yawing & Hydraulic Braking
Shutting Down Method
Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty
2 years for generator and 1 year for other parts
Shutting Down Method
Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty
2 years for generator and 1 year for other parts

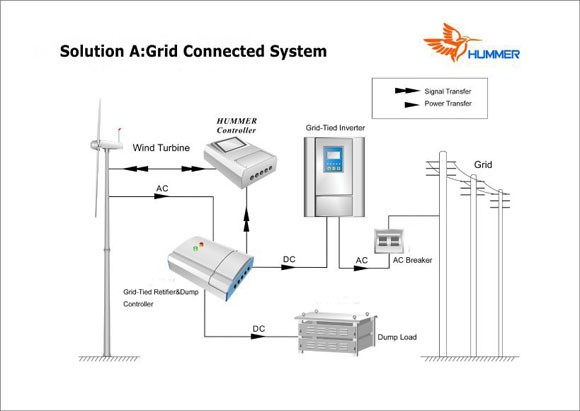

How 30KW Wind Turbine For Farm works
