Hummer 2KW Wind Turbine For Household






Hummer 2KW Wind Turbine For Household

Hummer 2KW Wind Turbine For Household

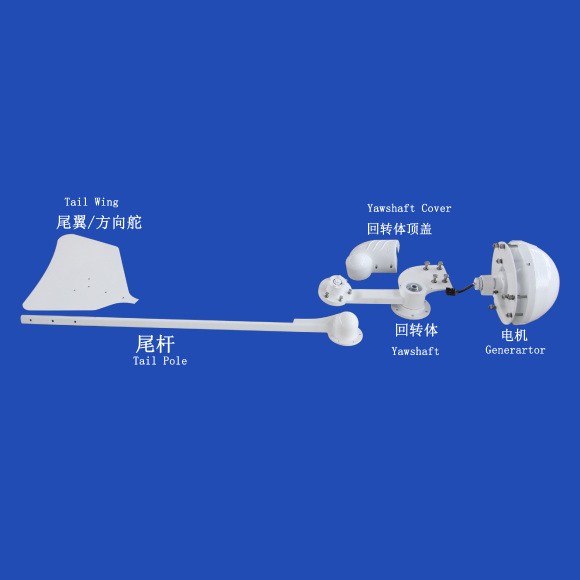

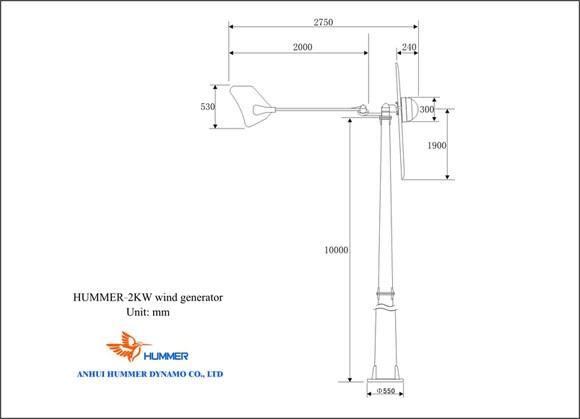

Hummer 2KW Wind Turbine For Household Structure

Hummer 2KW Wind Turbine For Household Structure

Hummer 2KW Wind Turbine For Household Structure

Hummer 2KW Wind Turbine For Household Structure

Hummer manufactures and offers advanced 2KW Wind Turbine For Household specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years,  2KW

Wind Turbine For Household have been exported to 91 countries and areas, such as the USA,

Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

2KW Wind Turbine For Household such as users manuals, data sheet, PDFdocuments,

certifications please email us sales@allwindturbine.com or call 086 551 65314300

Hummer 2KW Wind Turbine For Household curve

Hummer 2KW Wind Turbine For Household curve

H3.8-2KW Wind Turbine For Household specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф3.8m

Rated Power

2kW at 9m/s

Maximum Output Power

3.5kW at 14m/s

Battery Bank Voltage

120 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.80

Wind Energy Utilizing Ratio

0.45 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

25 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking

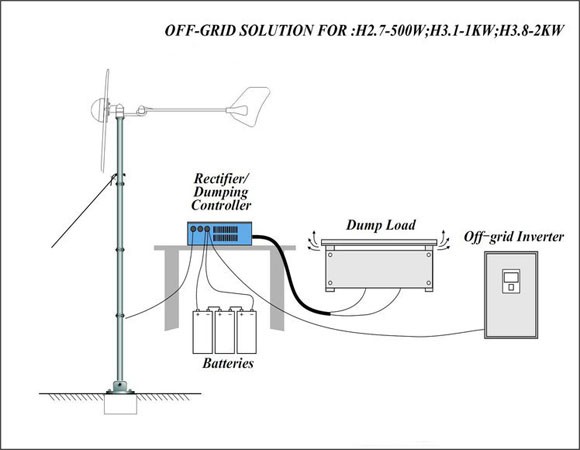

How 2KW Wind Turbine For Household works

How 2KW Wind Turbine For Household works
