Hummer 2KW Wind Generator System






Hummer 2KW Wind Generator System

Hummer 2KW Wind Generator System

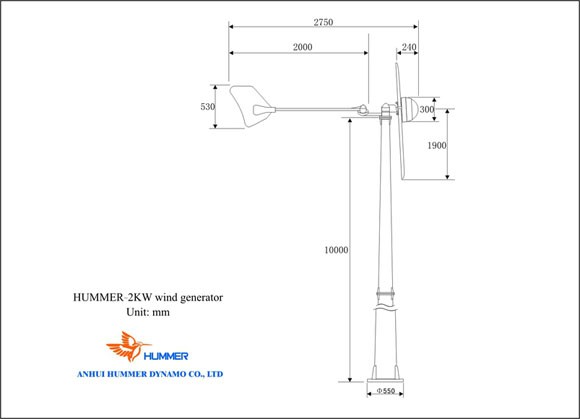

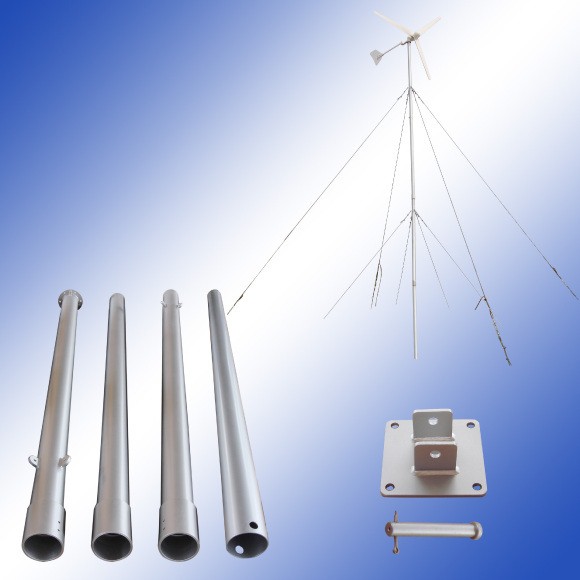

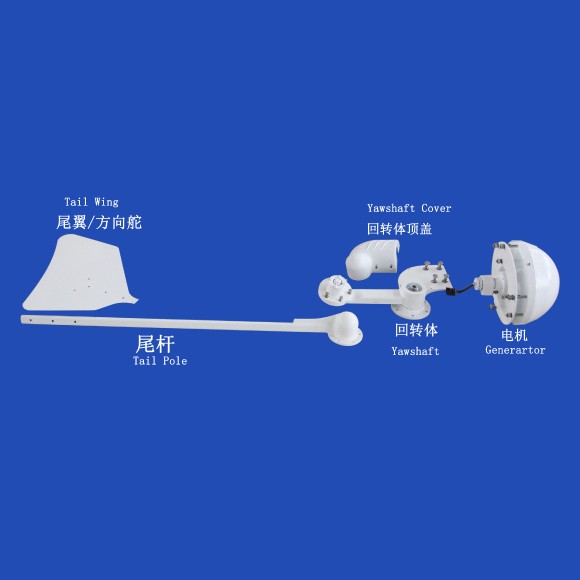

Hummer 2KW Wind Generator System Structure

Hummer 2KW Wind Generator System Structure

Hummer 2KW Wind Generator System Structure

Hummer 2KW Wind Generator System Structure

Hummer manufactures and offers advanced 2KW Wind Generator System specifically designed for residential

houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are

third party certified and during the past 10 years,  2KW Wind Generator System have been exported to 91

countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.

For more information on 2KW Wind Generator System such as users manuals, data sheet, PDF documents,

certifications please email us sales@allwindturbine.com or call 086 551 65314300

Hummer 2KW Wind Generator System curve

Hummer 2KW Wind Generator System




H3.8-2000W Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation  Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control  LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

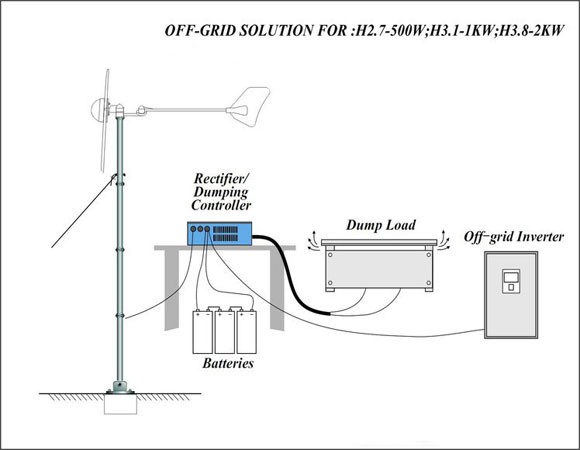

How 2KW Wind Generator System works

How 2KW Wind Generator System works
