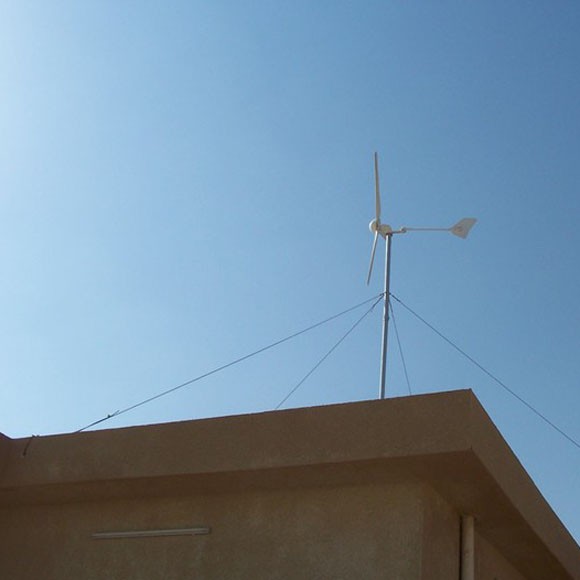

Hummer 1KW Wind Turbine For Household






Hummer 1KW Wind Turbine For Household

Hummer 1KW Wind Turbine For Household

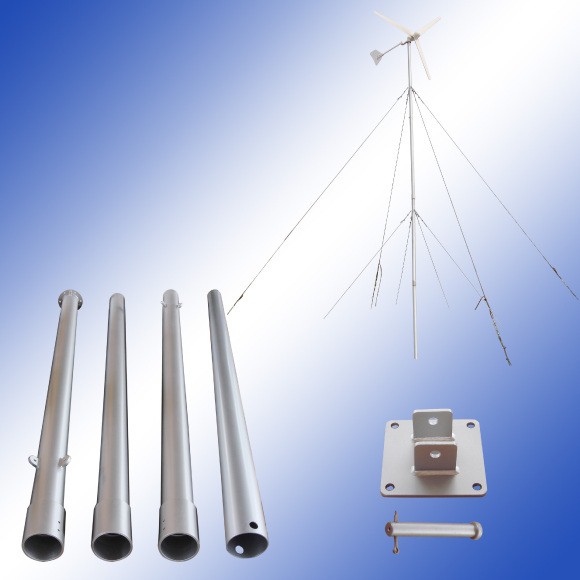

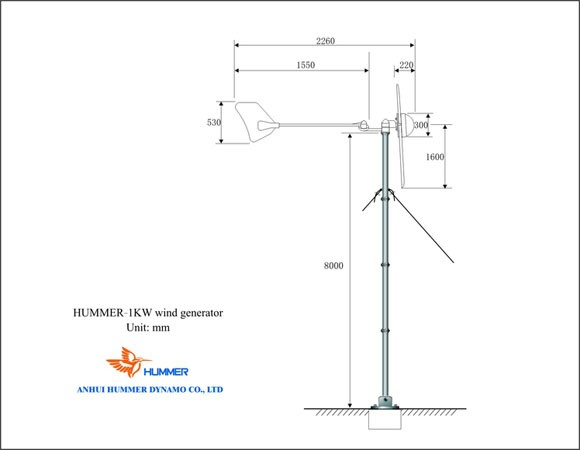

1KW Household Wind Turbine Structure

1KW Household Wind Turbine Structure

1KW Household Wind Turbine Structure

Hummer manufactures and offers advanced 1KW Household Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years, Hummer

1KW Household Wind Turbine have been exported to 91 countries and areas, such as the USA,

Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

Hummer 1KW Household Wind Turbine such as users manuals, data sheet, PDF documents,

certifications please email us sales@allwindturbine.com or call 086 551 65314300

Hummer 1KW Household Wind Turbine curve

Hummer 1KW Household Wind Turbine curve

H3.1-1KW Household Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф3.1m

Rated Power

1KW at 9m/s

Maximum Output Power

2 kW at 14.5m/s

Battery Bank Voltage

60 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.80

Wind Energy Utilizing Ratio

0.45 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

15 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking

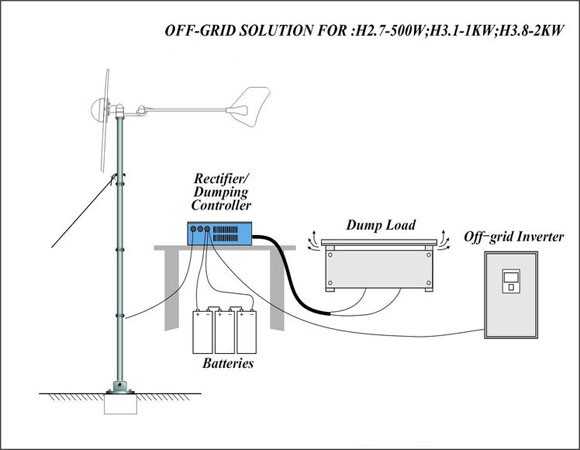

How 1KW Household Wind Turbine works

How 1KW Household Wind Turbine works
