Hummer 1KW Micro Wind Turbine



  • Products Visitors:3386
  • Product Name:Hummer 1KW Micro Wind Turbine
  • Package:0.516 CBM, 4 Packages
  • Size:3.1m wind blades, 8m guyed tower
  • Model:H3.1-1KW

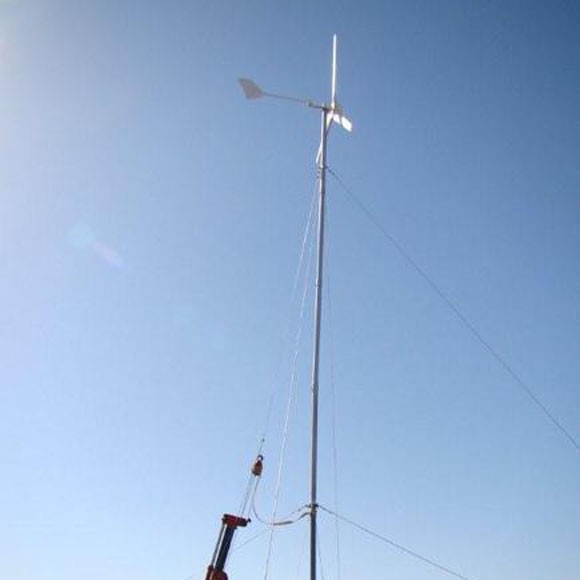

Hummer 1KW Micro Wind Turbine

Hummer 1KW Micro Wind Turbine

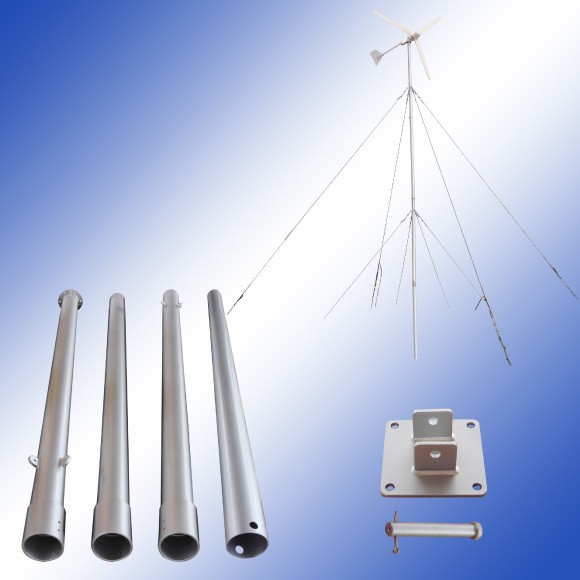

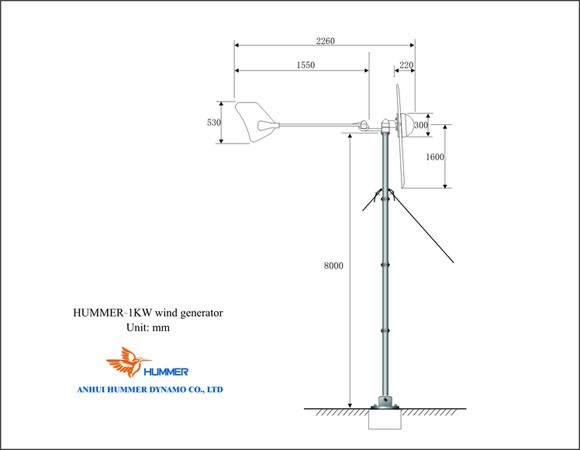

1KW Micro Wind Turbine Structure

1KW Micro Wind Turbine Structure

1KW Micro Wind Turbine Structure

Hummer manufactures and offers advanced 1KW Micro Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years,

Hummer 1KW Micro Wind Turbine have been exported to 91 countries and areas, such as

the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more

information on Hummer 1KW Micro Wind Turbine such as users manuals, data sheet, PDF

documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300


Hummer 1KW Micro Wind Turbine curve

Hummer 1KW Micro Wind Turbine curve


H3.1-1KW Micro Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф3.1m

Rated Power

1KW at 9m/s

Maximum Output Power

2 kW at 14.5m/s

Battery Bank Voltage

60 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.80

Wind Energy Utilizing Ratio

0.45 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

15 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking

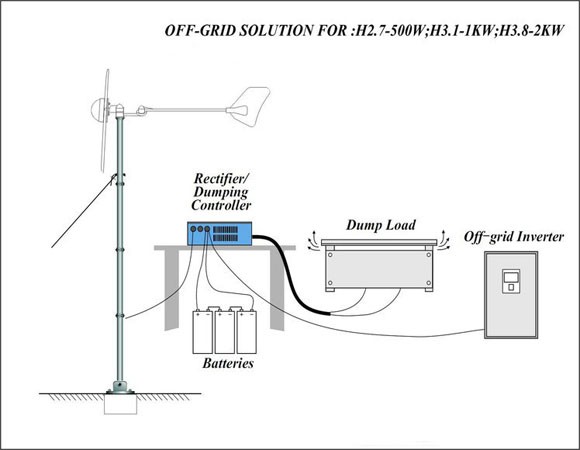

How 1KW Micro Wind Turbine works


How 1KW Micro Wind Turbine works
