Hummer 1KW Horizontal Wind Generator

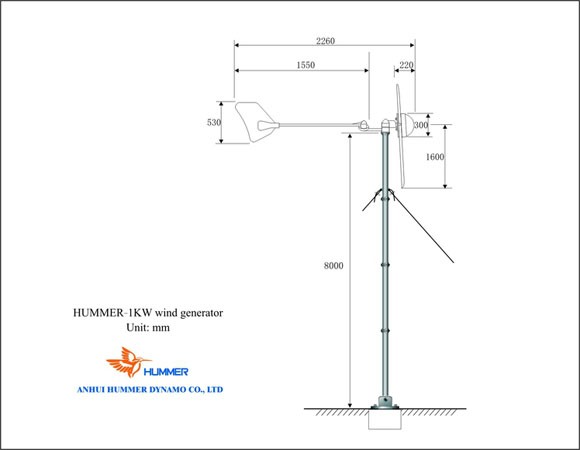

1KW Horizontal Wind Generator Structure
Hummer manufactures and offers advanced 1KW Horizontal Wind Generator specifically designed for residential
houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are
third party certified and during the past 10 years, Hummer 1KW Horizontal Wind Generator have been exported
to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain
etc. For more information on Hummer 1KW Horizontal Wind Generator such as users manuals, data sheet, PDF
documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300
Hummer 1KW Horizontal Wind Generator curve
H3.1-1KW Horizontal Wind Generator specifications |
|
Configuration |
3 Blades, Horizontal axis, upwind |
Rotor Diameter |
Ф3.1m |
Rated Power |
1KW at 9m/s |
Maximum Output Power |
2 kW at 14.5m/s |
Battery Bank Voltage |
60 Vdc |
System Output Voltage |
110/220 Vac |
Cut-in Wind Vpeed |
3 m/s |
Working Wind Speed |
3-25 m/s |
Survival Wind Speed |
50 m/s |
Generator Efficiency |
>0.80 |
Wind Energy Utilizing Ratio |
0.45 Cp |
Alternator |
Permanent magnet alternator, SCF technology |
Alternator Weight (kg) |
15 kg |
Gearbox |
None, Direct drive, front generator design |
Blade Material |
Fiberglass reinforced composite |
Over Speed Regulation |
Passive furling tail design |
Shutting Down Method |
Manual & Automatic electromagnetism Braking |

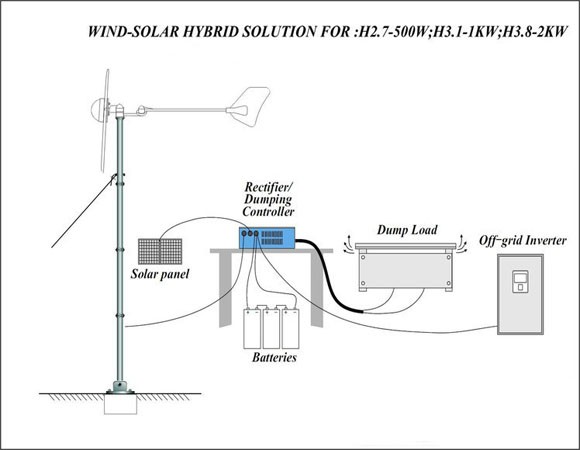

How 1KW Horizontal Wind Generator works
