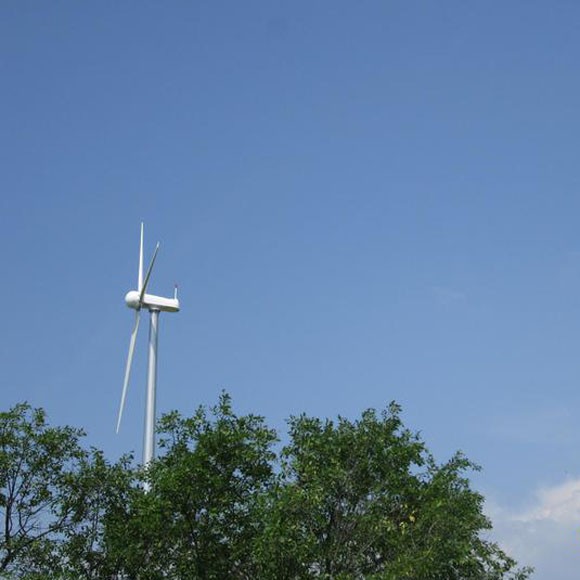

Hummer 10KW Horizontal Wind Generator






Hummer 10KW Horizontal Wind Generator

Hummer 10KW Horizontal Wind Generator

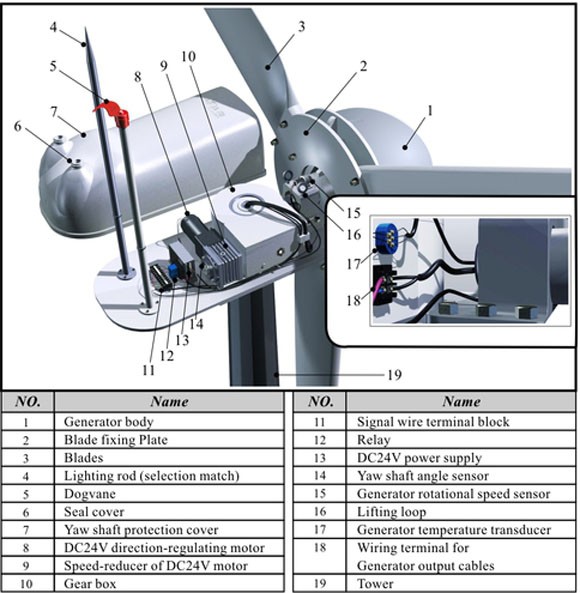

10KW Horizontal Wind Generator Structure

10KW Horizontal Wind Generator Structure

10KW Horizontal Wind Generator Structure

Hummer manufactures and offers advanced 10KW Horizontal Wind Generator specifically

designed for residential  houses; farms; telecommunication stations; commercial wind farms;

 water-pumping, etc. Our products are third party certified and during the past 10 years,

 Hummer 10KW Horizontal Wind Generator have been exported to 91 countries and areas,

 such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain

 etc. For more information on 10KW Horizontal Wind Generator such as users manuals,

data sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

10KW Horizontal Wind Generator curve

10KW Horizontal Wind Generator curve

H8.0-10KW Horizontal Wind Generator specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф8.0m

Rated Power

10KW at 10m/s

Maximum Output Power

15KW at 14.3m/s

Battery Bank Voltage

240 Vdc

System Output Voltage

110/220/380 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.85

Wind Energy Utilizing Ratio

0.40 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

287 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking & Hydraulic Braking

How 10KW Horizontal Wind Generator works

How 10KW Horizontal Wind Generator works
