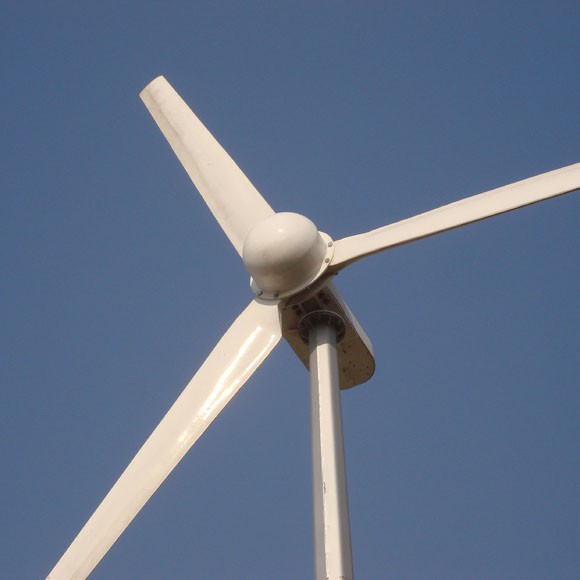

Hummer 10KW Domestic Wind Turbine

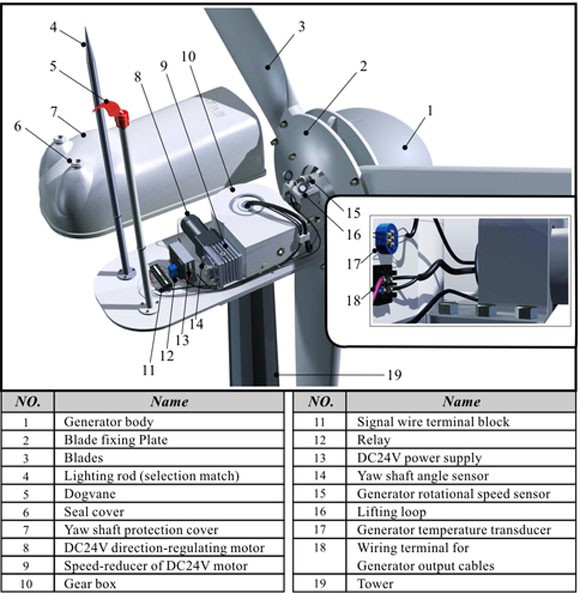

10KW Domestic Wind Turbine Structure


Hummer manufactures and offers advanced 10KW Domestic Wind Turbine specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. Our products are third party certified and during the past 10 years,
Hummer 10KW Domestic Wind Turbine have been exported to 91 countries and areas,
such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain
etc. For more information on 10KW Domestic Wind Turbine such as users manuals,
data sheet, PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
10KW Domestic Wind Turbine curve

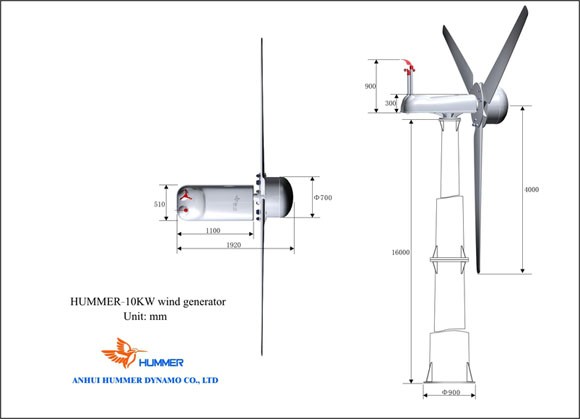

					H8.0-10KW Specifications




					Configuration


					3 Blades, Horizontal axis, Upwind




					Rotor Diameter


					Ф8.0 m / 26.2 ft




					Swept Area


					50.27 m2 / 541.1 ft2




					Direction of Rotation


					Clockwise looking upwind




					Blade Material


					Fiberglass reinforced composite




					Rated Power


					10 kW @ 11m/s / 24.6 mph




					Maximum Output Power


					11 kW @ 20m/s / 44.7 mph




					Battery Bank Voltage


					240 Vdc




					System Output Voltage


					110/220/380 Vac




					Cut-in Wind Speed


					3 m/s / 6.7 mph




					Rated rotating rate


					200 r/min




					Working Wind Speed


					3-25 m/s / 6.7-82.5  mph




					Survival Wind Speed


					50 m/s / 164 mph




					Alternator


					Permanent magnet alternator, SCF technology




					Alternator Weight


					287 kg / 632.7 lbs




					Generator Efficiency


					>0.85




					Wind Energy Utilizing Ratio


					0.40 Cp




					Energy monitoring & User control


					Siemens PLC controller with touch screen




					Gearbox


					None, Direct drive with front generator design




					Over Speed Regulation


					Auto Yawing & Hydraulic Braking




					Shutting Down Method


					Manual & Automatic electromagnetism Braking & Hydraulic Braking




					Warranty


					2 years for generator and 1 year for other parts




					Shutting Down Method


					Manual & Automatic electromagnetism Braking & Hydraulic Braking





					Warranty


					2 years for generator and 1 year for other parts

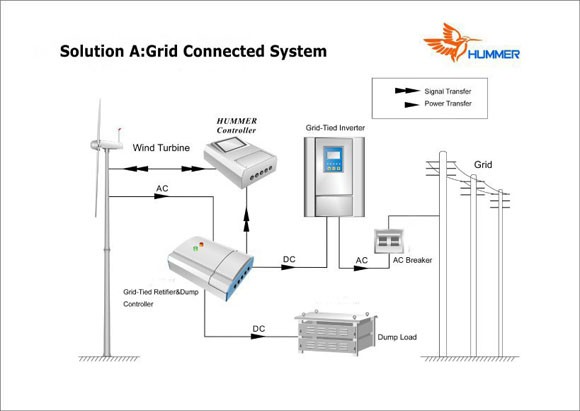

How 10KW Domestic Wind Turbine works
