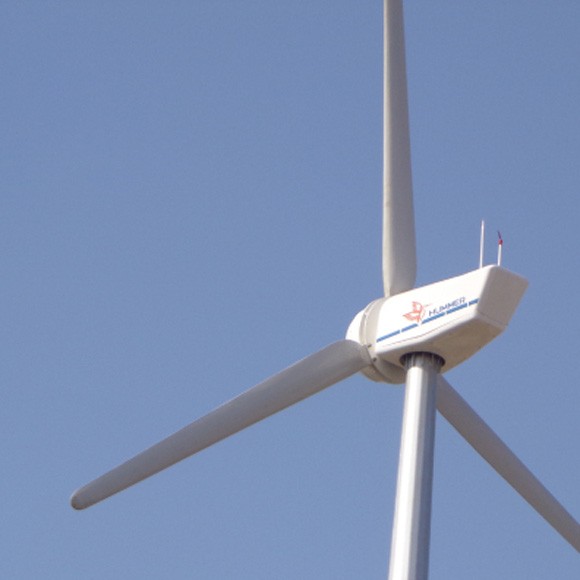

Hummer 100KW Horizontal Wind Generator

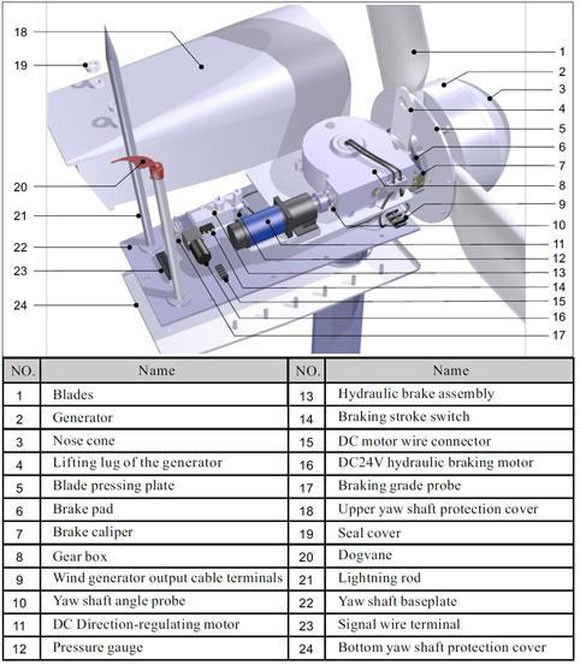

100KW Horizontal Wind Generator Structure

Hummer manufactures and offers advanced 100KW Horizontal Wind Generator which
adopting generator prepositive design without gears specifically designed for residential
houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.
Also with higher Wind energy utilizing ratio. SCF supercritical geenrator technology with
NSK bearings ensure a long running life. Our products are third party certified and during
the past 10 years, Hummer wind generator have been exported to 91 countries and
areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.
For more information on 100KW Horizontal Wind Generator such as users manuals, data
sheet, PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300

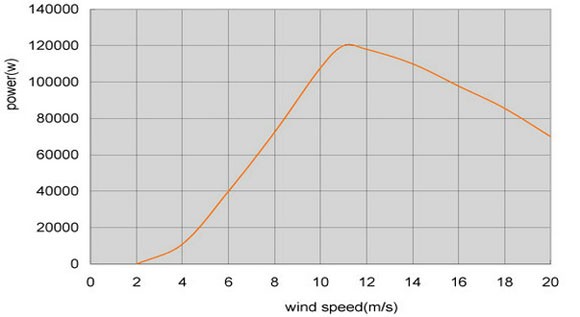

	100KW Horizontal Wind Generator curve






					H20.8-100KW Specifications




					Configuration


					3 Blades, Horizontal axis, Upwind




					Rotor Diameter


					Ф20.8 m / 68.2 ft




					Swept Area


					339.80 m2 / 3657.6 ft2




					Direction of Rotation


					Clockwise looking upwind




					Blade Material


					Fiberglass reinforced composite




					Rated Power


					100 kW @ 12m/s / 26.8 mph




					Maximum Output Power


					106 kW @ 20m/s / 44.7 mph




					Battery Bank Voltage


					460 Vdc




					System Output Voltage


					380 Vac




					Cut-in Wind Speed


					3 m/s / 6.7 mph




					Rated rotating rate


					100 r/min




					Working Wind Speed


					3-25 m/s / 6.7-82.10  mph




					Survival Wind Speed


					50 m/s / 164 mph




					Alternator


					Permanent magnet alternator, SCF technology




					Alternator Weight


					2196 kg / 4620.9 lbs




					Generator Efficiency


					>0.92




					Wind Energy Utilizing Ratio


					0.45 Cp




					Energy monitoring & User control


					Siemens PLC controller with touch screen




					Gearbox


					None, Direct drive with front generator design




					Over Speed Regulation


					Auto Yawing & Hydraulic Braking




					Shutting Down Method


					Manual & Automatic electromagnetism Braking & Hydraulic Braking




					Warranty


					2 years for generator and 1 year for other parts




					Shutting Down Method


					Manual & Automatic electromagnetism Braking & Hydraulic Braking





					Warranty


					2 years for generator and 1 year for other parts

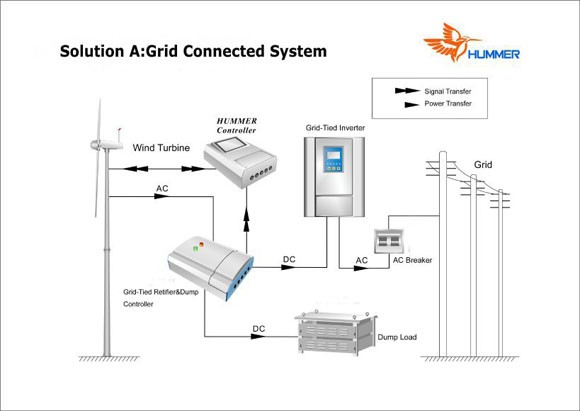

How 100KW Horizontal Wind Generator works
