H9.0-20KW Wind Turbine



  • Products Visitors:5611
  • Product Name:H9.0-20KW Wind Turbine
  • Package:11.897 CBM, 9 Packages
  • Size:16m free standing tower
  • Model:H9.0-20KW

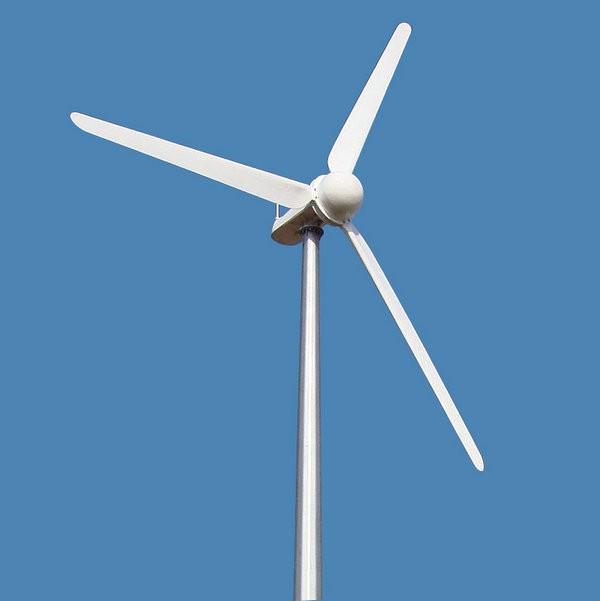

H9.0-20KW Wind Turbine

H9.0-20KW Wind Turbine

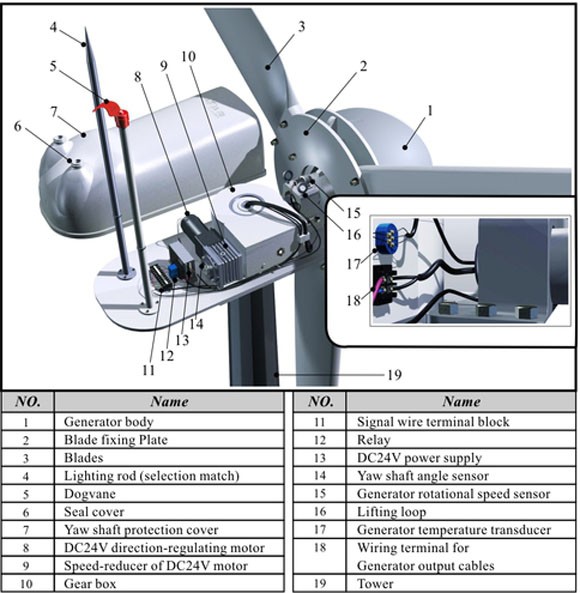

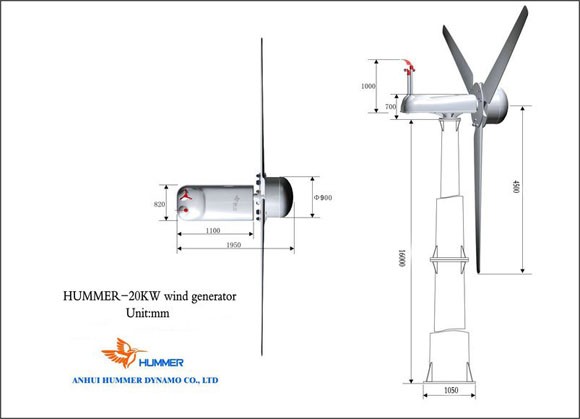

H9.0-20KW Wind Turbine Structure

H9.0-20KW Wind Turbine Structure

H9.0-20KW Wind Turbine Structure

Hummer manufactures and offers advanced H9.0-20KW Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. 20kw small wind power generator adopting SCF supercritical technology

and two SKF bearings. Siemens PLC controller with human-oriented touch screen, which can

realize real-time monitoring. Optional off grid and grid connected system, optional single phase

and three phase output, and optional hydraulic braking system as well as hydraulic towers.

H9.0-20KW Wind Turbine curve

H9.0-20KW Wind Turbine curve



H9.0-20KW Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф9.0 m / 29.5 ft
Swept Area 63.62 m2 / 684.7 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 20 kW @ 11m/s / 24.6 mph
Maximum Output Power 22 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 180 r/min
Working Wind Speed 3-25 m/s / 6.7-82.6  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 496 kg / 1093.5 lbs
Generator Efficiency >0.87
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
