H8.0-10KW Wind Turbine



  • Products Visitors:3730
  • Product Name:H8.0-10KW Wind Turbine
  • Size:15m free standing tower
  • Model:H8.0-10KW
  • Package:8.595 CBM, 8 Packages

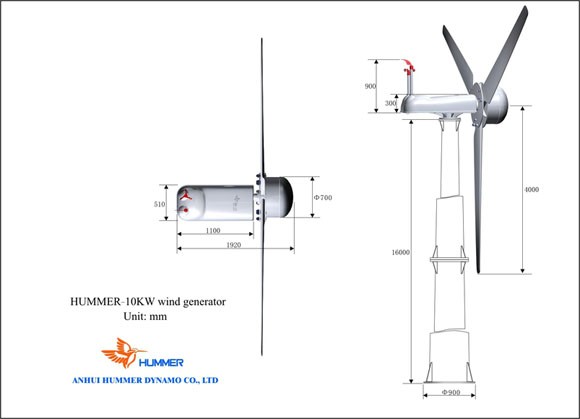

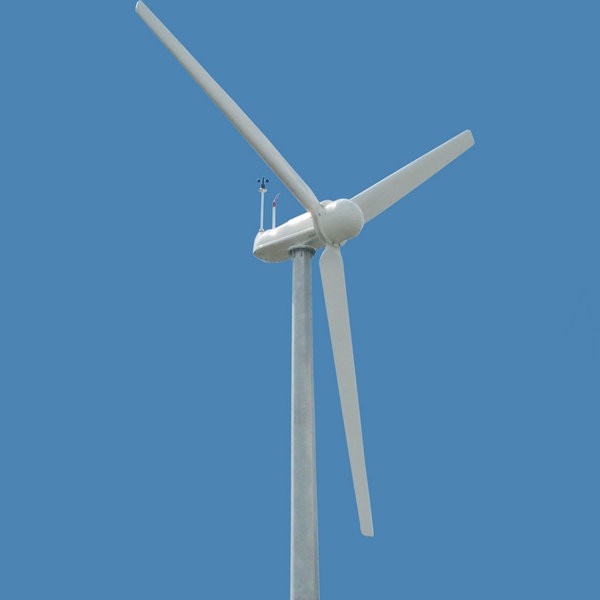

H8.0-10KW Wind Turbine

H8.0-10KW Wind Turbine

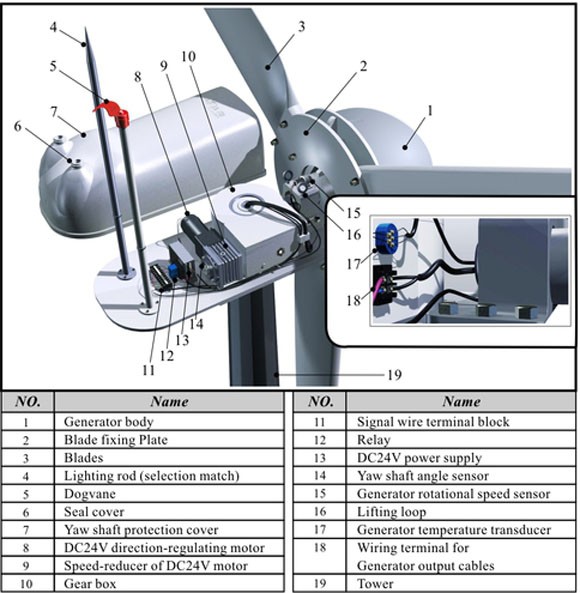

H8.0-10KW Wind Turbine Structure

H8.0-10KW Wind Turbine Structure

H8.0-10KW Wind Turbine Structure

Hummer manufactures and offers advanced H8.0-10KW Small Wind Power Generator

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc. With anemometer and dogvane which will collect and transfer

wind information to PLC controller. Users can use touch screen to fulfill the manual seek wind,

manual and forced start-up. Remote control can also be realized by the internet.

H8.0-10KW Wind Turbine curve

H8.0-10KW Wind Turbine curve

H8.0-10KW Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

   Solutions In H8.0-10KW Wind Turbine

-H8.0-10KW Off Grid Wind Turbine
-H8.0-10KW Grid Tied Wind Turbine
-H8.0-10KW Wind Solar Hybrid System
-H8.0-10KW Wind Solar Diesel Hybrid System
Our products are third party certified and during the past 10 years, Hummer 10KW Wind Turbine

have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the

UK, Italy, France, India, Spain etc. For more information on 10KW Off Grid Wind Turbinesuch as

users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300
