H8.0-10KW Wind Solar Diesel Hybrid System






H8.0-10KW Wind Solar Diesel Hybrid System

H8.0-10KW Wind Solar Diesel Hybrid System

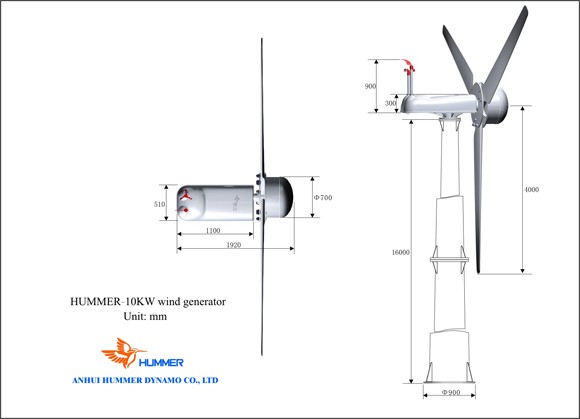

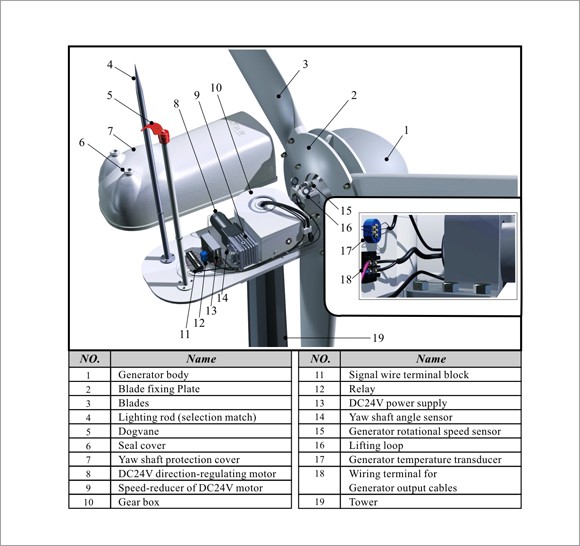

H8.0-10KW Wind Solar Diesel Hybrid System Structure

H8.0-10KW Wind Solar Diesel Hybrid System Structure

H8.0-10KW Wind Solar Diesel Hybrid System Structure

Hummer manufactures and offers advanced H8.0-10KW Wind Solar Diesel Hybrid System

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc. The electricity from wind generator and solar panels charges

the batteries after being rectified and powers the loads through the inverter. Diesel generator

serves as standby when wind and solar energy can meet the power demands. Our products

are third party certified and during the past 10 years, Hummer 10KW Wind Turbine have been

exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy,

France, India, Spain etc. For more information on 10KW Wind Solar Diesel Hybrid System such

as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

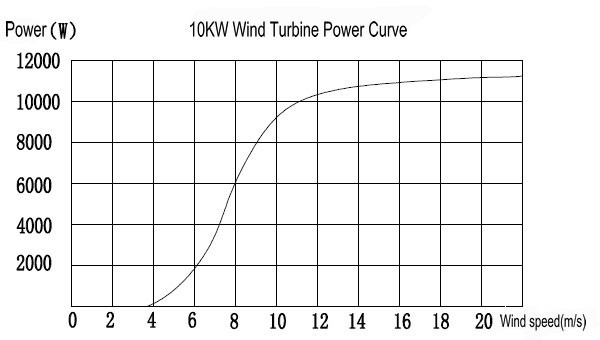

H8.0-10KW Wind Solar Diesel Hybrid System curve

H8.0-10KW Wind Solar Diesel Hybrid System curve

H8.0-10KW Wind Solar Diesel Hybrid System Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

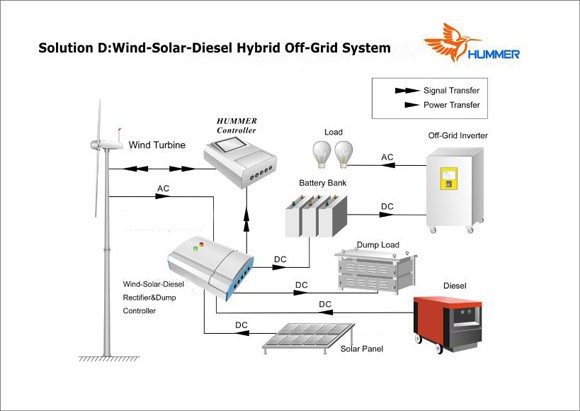

How H8.0-10KW Wind Solar Diesel Hybrid System works

How H8.0-10KW Wind Solar Diesel Hybrid System works
