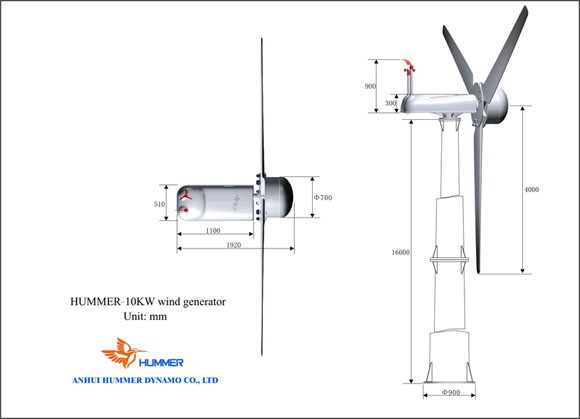

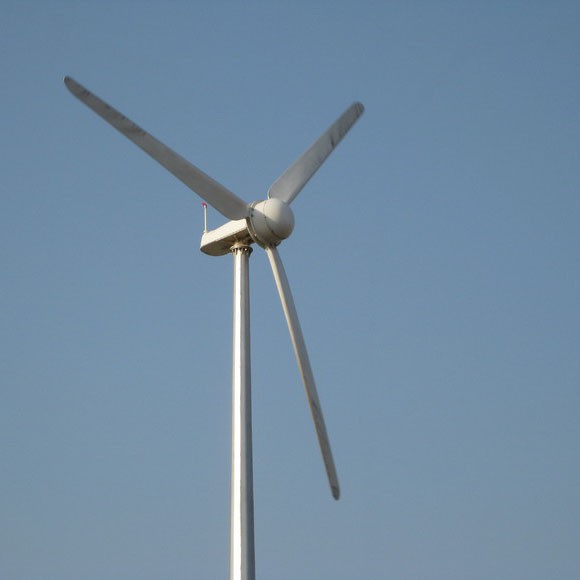

H8.0-10KW Off Grid Wind Turbine






H8.0-10KW Off Grid Wind Turbine

H8.0-10KW Off Grid Wind Turbine

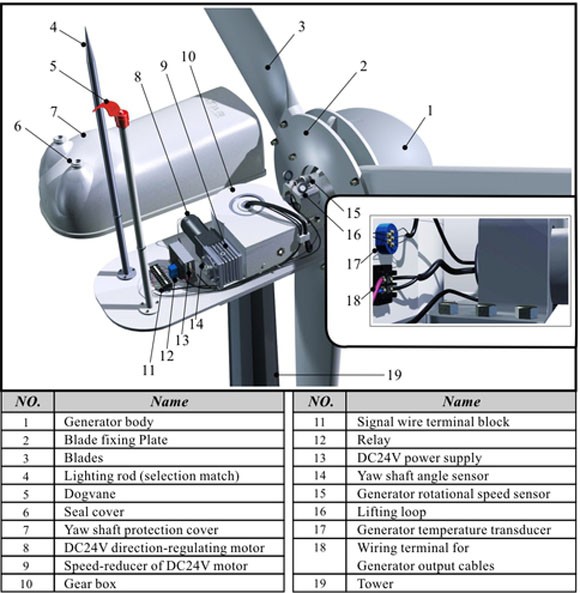

H8.0-10KW Off Grid Wind Turbine Structure

H8.0-10KW Off Grid Wind Turbine Structure

H8.0-10KW Off Grid Wind Turbine Structure

Hummer manufactures and offers advanced H8.0-10KW Off Grid Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. The electricity from 10KW Off Grid wind generator charges the batteries

after being rectified and powers the loads through the inverter. Features with intelligent

charging and discharging,independent power supply. Our products are third party certified

and during the past 10 years, Hummer 10KW Wind Turbine have been exported to 91 countries

and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain

etc. For more information on 10KW Off Grid Wind Turbinesuch as users manuals, data sheet,

PDF documents, certifications please email us sales@allwindturbine.com or

call 086 551 65314300

H8.0-10KW Off Grid Wind Turbine Curve

H8.0-10KW Off Grid Wind Turbine curve

H8.0-10KW Off Grid Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

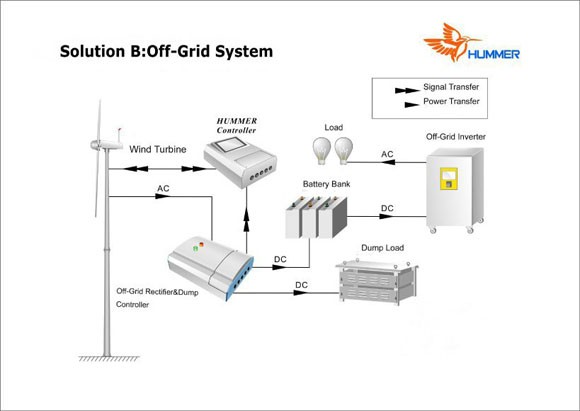

How H8.0-10KW Off Grid Wind Turbine works

How H8.0-10KW Off Grid Wind Turbine works
