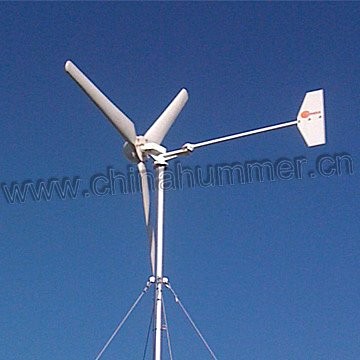

H3.1-1kw all-in-one system



  • Products Visitors:4163
  • Product Name:H3.1-1kw all-in-one system
  • Package:0.516 CBM, 4 Packages
  • Size:3.1m wind blades, 8m guyed tower
  • Model:H3.1-1kw





Specification for H3.1-1kw all-in-one system

H3.1-1000W all-in-one system Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
