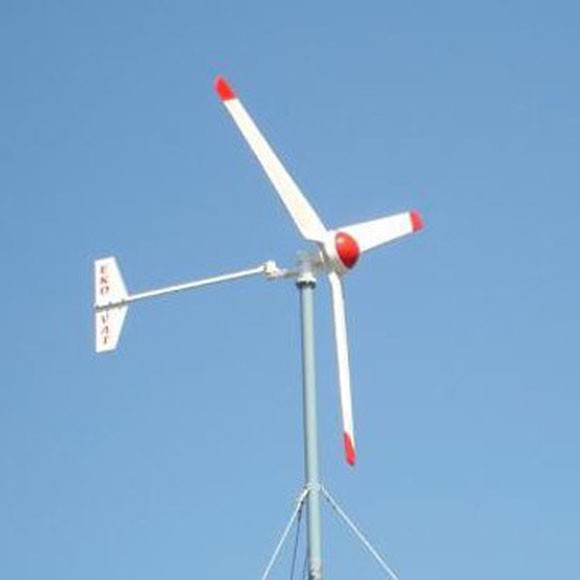

H3.1-1KW Off Grid 48V Wind Turbine

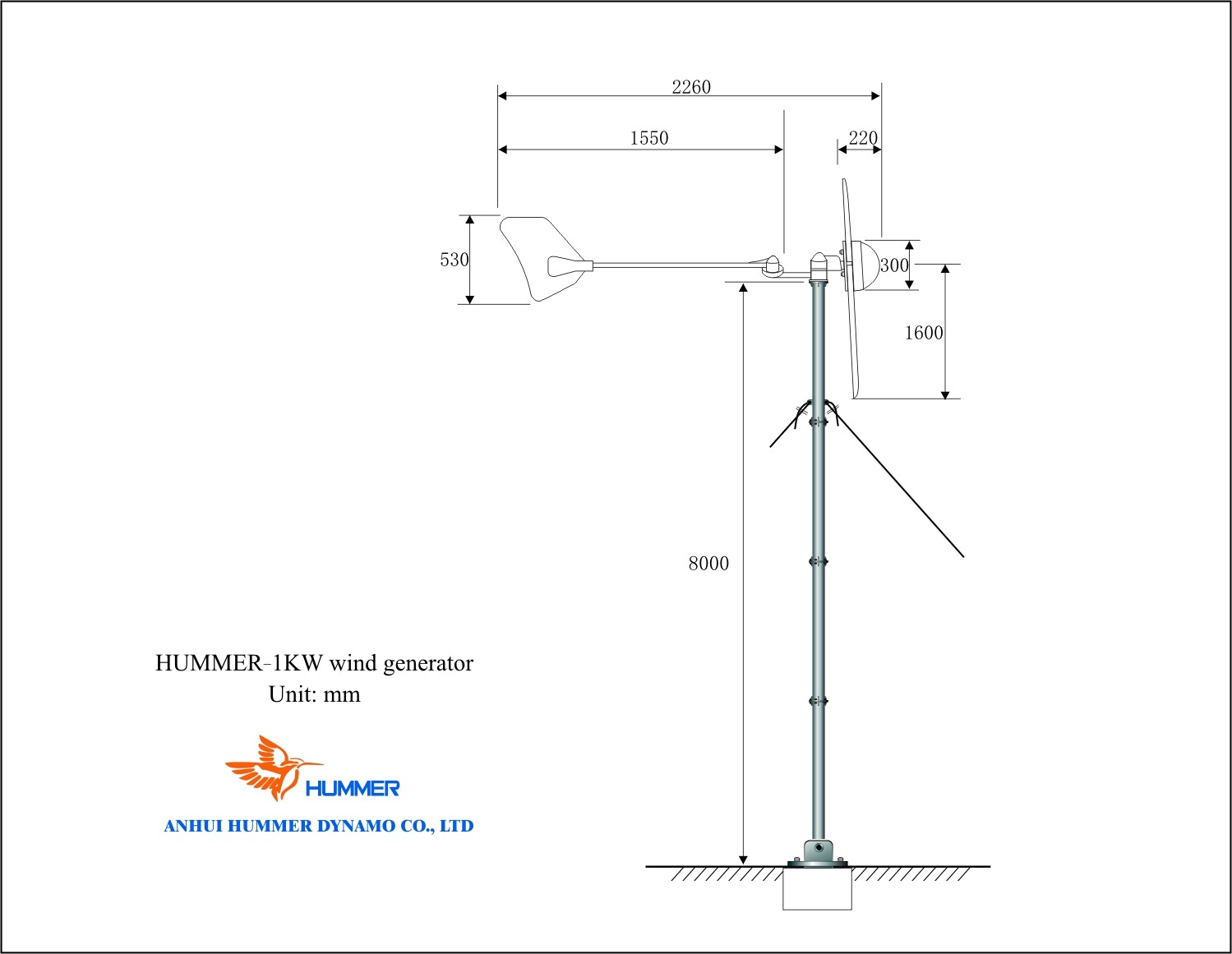

H3.1-1KW Off Grid 48V Wind Turbine Structure
Hummer manufactures and offers advanced H3.1-1KW Off Grid 48V Wind Turbine specifically
designed for telecom. The batteries after being rectified and powers the telecommunication
equipment. Features with intelligent charging and discharging,independent power supply.
Our products are third party certified and during the past 10 years, 1KW Wind Turbine
have been exported to 91 countries and areas, such as the USA, Canada, Australia,
Germany, the UK, Italy, France, India, Spain etc. For more information on H3.1-1KW DC48V
Wind Turbine such as users manuals, data sheet, PDF documents, certifications please
email us sales@allwindturbine.com or call 086 551 65314300

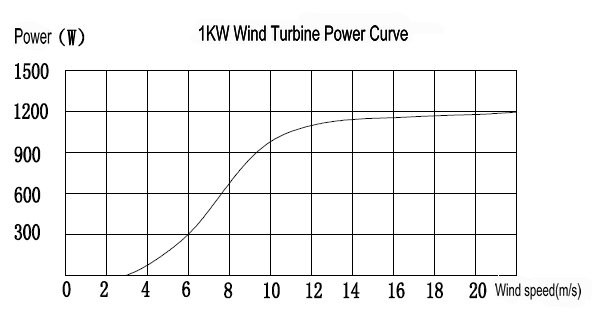

H3.1-1KW Off Grid 48V Wind Turbine curve
H3.1-1000W Off Grid 48V Wind Turbine Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф3.1 m / 10.2 ft |
Swept Area | 7.55 m2 / 81.3 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 1 kW @ 10m/s / 22.4 mph |
Maximum Output Power | 1.2 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 60 Vdc |
System Output Voltage | 110/220 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 500 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.1 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 15 kg / 33.1 lbs |
Generator Efficiency | >0.80 |
Wind Energy Utilizing Ratio | 0.45 Cp |
Energy monitoring & User control | LED display |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Passive furling tail design |
Shutting Down Method | Manual & Automatic electromagnetism Braking |
Warranty | 2 years for generator and 1 year for other parts |

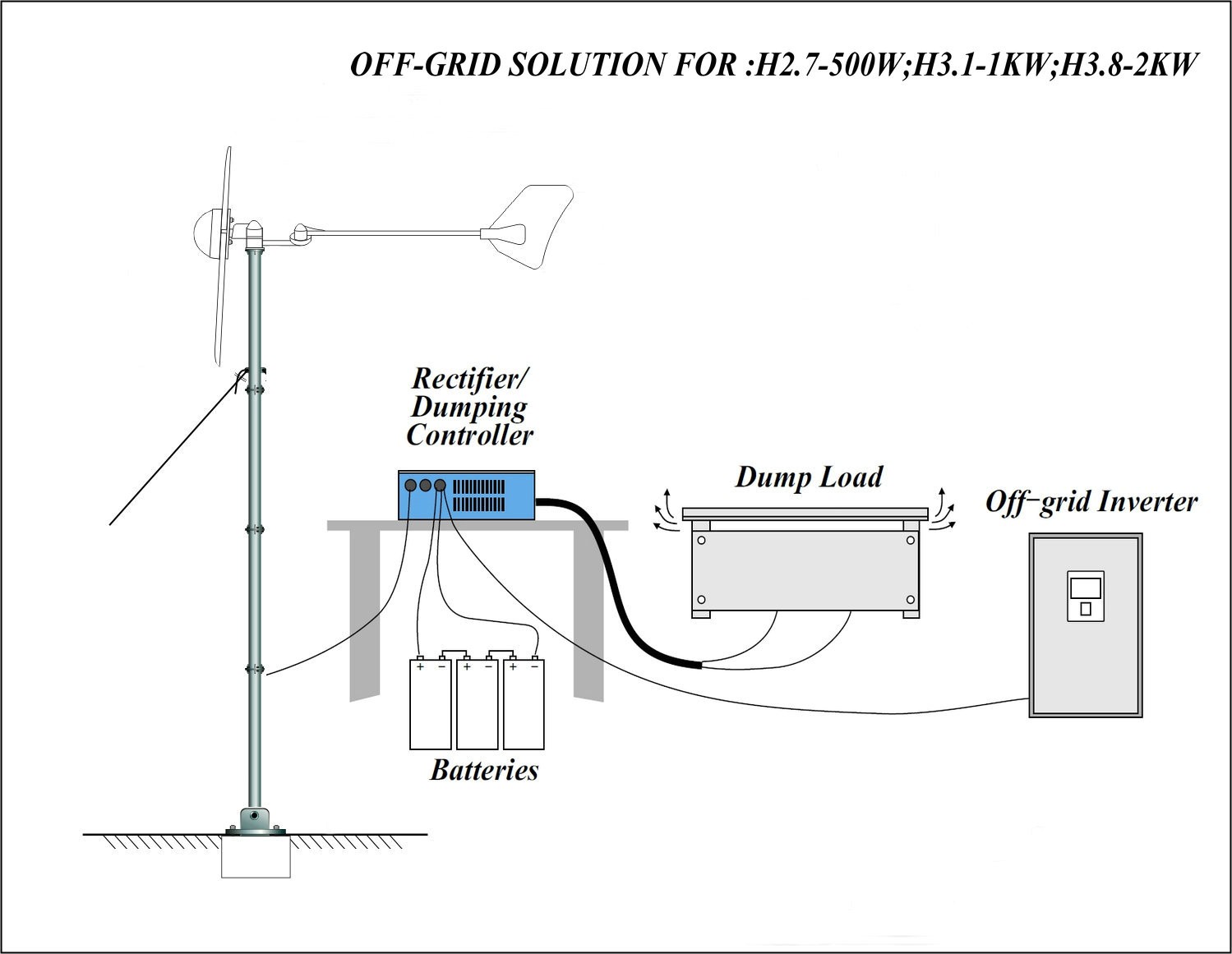

How H3.1-1KW Off Grid 48V Wind Turbine works
