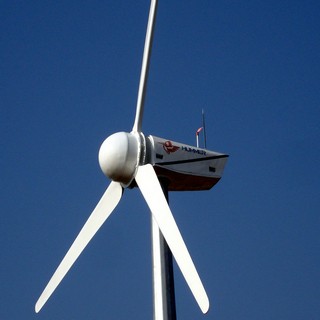

H19.2-100KW wind power, a typical HUMMER smart Wind turbine with a series of high-end technologies and refined material, is excellent in generation, stable in output and reliable in practice.
Efficient Generator
Hummer generator is one of the most advanced generators in the world. Made of refined permanent magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in generating power. Due to its smallness, it is able to be placed inside the nose cone to reduce air resistance and increase efficiency.
Due to its advanced technologies, refined materials and unique design, H19.2-100kw wind turbinewind energy utilization factor is as high as 0.42 while generator efficiency is higher than 0.92.
Smart Control
H19.2-100kw wind turbine is controlled by a comprehensive smart system. Through our years of monitoring on wind turbine operation, we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor generator working status, rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center.
When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction. After problem is released, wind turbine will turn to face wind direction again and resume generation.
H19.2-100kw wind turbine systems, both off grid and grid tied
data of the inveter
|
MODEL |
100KW |
|
INPUT VALUE of HUMMER (DC side) |
|
|
DC input voltage range |
300V-500V |
|
Consecutive overloading capacity |
110% |
|
Rated DC output Power |
100KW |
|
Personal Protection |
Ground |
|
OUTPUT VALUE of HUMMER (AC side) |
|
|
Rated power |
100KW |
|
AC Voltage Range(LINE -TO-NEUTRAL) |
180-250V AC/180-260V AC/180-270V AC |
|
AC Voltage Range(LINE -TO-LINE) |
340-420V AC |
|
AC Frequency |
47-51.5HZ/57-61.5HZ |
|
Power Factor |
>0.99 |
|
MAX Efficiency |
95% |
|
European Efficiency |
92% |
|
Internal Consumption during Operation |
<10W standby |
|
Protection |
Short circuit protection, over Heat protection, over load protection, safety protection |
|
Total Current Harmonic Distortion (THD) |
THD<3% |
|
Phase Shift |
0 |
|
Utility Monitor |
According to UL1741 |
|
Mechanical Specifications |
|
|
Size(W*H*D) |
1285 x1085 x 2085mm |
|
Net weight |
240kg |
|
Temperature |
-20°C~+40°C |
|
Characteristics |
|
|
Utility Disconnect |
Connect to NEC |
|
Cooling |
Wind cooling |
|
Display |
LED and LCD |
|
Communication |
RS485 |
|
EMC (Electromagnetic compatibility) |
EN50081, part1 |
|
EN50082, part2 |
|
|
Safety |
EN 50438 |
|
Grid interference |
EN61000-3-2 |
Main technical parameter:
| H20.8-100KW wind turbine Specifications | |
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | Ф20.8 m / 68.2 ft |
| Swept Area | 339.80 m2 / 3657.6 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 100 kW @ 12m/s / 26.8 mph |
| Maximum Output Power | 106 kW @ 20m/s / 44.7 mph |
| Battery Bank Voltage | 460 Vdc |
| System Output Voltage | 380 Vac |
| Cut-in Wind Speed | 3 m/s / 6.7 mph |
| Rated rotating rate | 100 r/min |
| Working Wind Speed | 3-25 m/s / 6.7-82.10 mph |
| Survival Wind Speed | 50 m/s / 164 mph |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 2196 kg / 4620.9 lbs |
| Generator Efficiency | >0.92 |
| Wind Energy Utilizing Ratio | 0.45 Cp |
| Energy monitoring & User control | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Auto Yawing & Hydraulic Braking |
| Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
| Warranty | 2 years for generator and 1 year for other parts |
