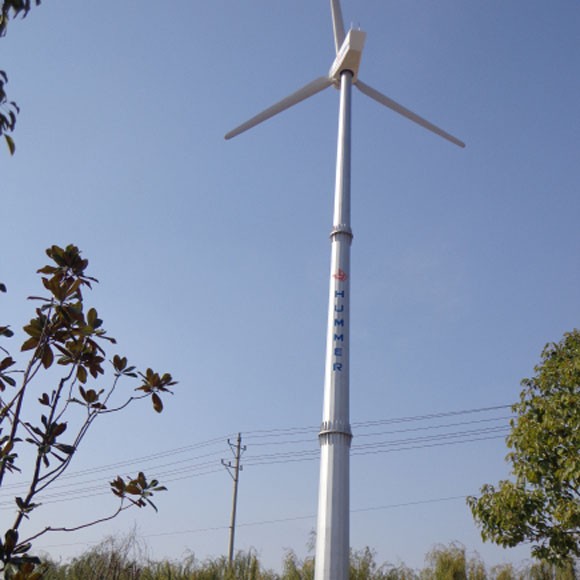

H12.0-50kw off-grid system



  • Products Visitors:4309
  • Product Name:H12.0-50kw off-grid system
  • Package:38.532 CBM, 10 Packages
  • Size:18m free standing tower
  • Model:H12.0-50KW



Detailed Product Description


wind power generator
1.CE proved+7patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

wind power generator

H12.0-50000W is a typical HUMMER smart Wind turbine,which with a series of high-end technologies and refined material, H12.0-50000W wind turbine is excellent in generation ,stable in output and reliable in practice.

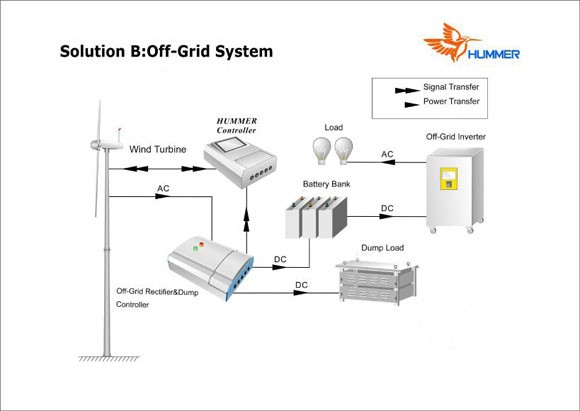

Application of H12.0-50kw off-grid system

It can drive air-condition ( ≤50 horsepower), 10kw water pump or other resistive  appliances (≤50KW).


Well used in:
 Housing, factory and farm
 Telecommunication Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station

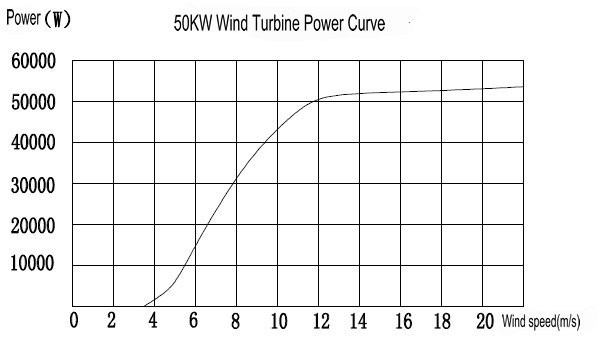

 50KW Wind Turbine Power Curve

Main technical parameter of H12.0-50kw off-grid system:

H12.0-50KW off-grid system Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф12.0 m / 39.4 ft
Swept Area 113.10 m2 / 1217.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 50 kW @ 12m/s / 26.8 mph
Maximum Output Power 54 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 400 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 140 r/min
Working Wind Speed 3-25 m/s / 6.7-82.8  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 1237 kg / 2727.1 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
