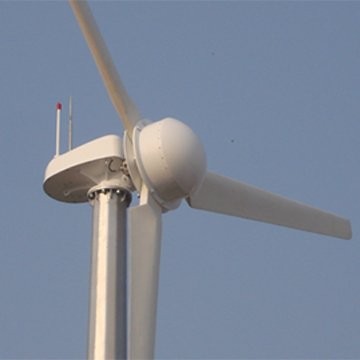

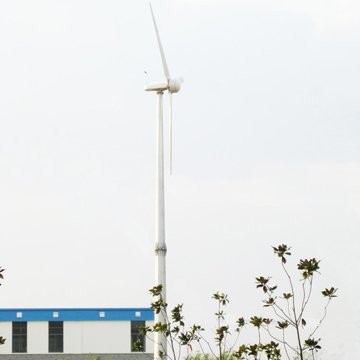

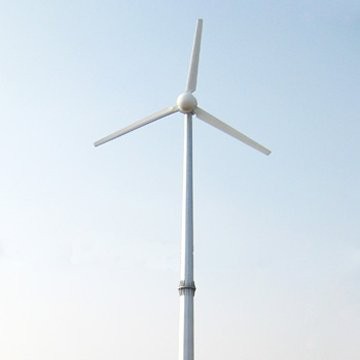

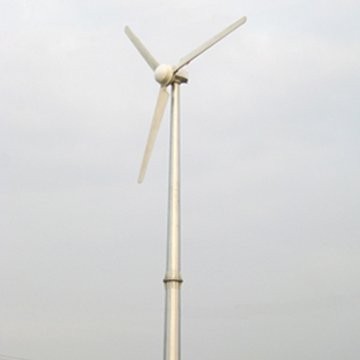

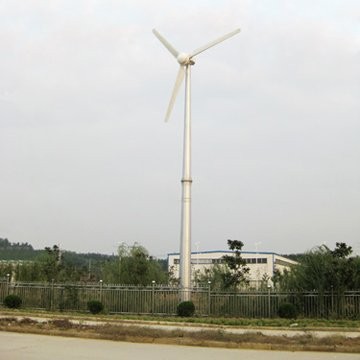

H10.0-30kw wind-solar hybrid system
Smart Control
H10.0-30000W home wind generator is controlled by a comprehensive smart system.
Through our years of monitoring on wind turbine operation ,we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor :generator working status,rotation speed,generator temperature ,wind speed and direction etc .All data will be transmitted to control center .
When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction .After problem is released wind turbinewill turn to face the wind direction again and resume generation .
H10.0-30000W home wind generator, both off grid and grid tied are available.
Application of H10.0-30kw wind-solar hybrid system
It can drive air condition ( ≤30 horsepower), 10kw water pump or other resistive appliances (≤30KW).
Well used in:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
shipping
Main technical parameter of H10.0-30kw wind-solar hybrid system
H10.0-30KW wind-solar hybrid system Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф10.0 m / 32.8 ft |
Swept Area | 78.54 m2 / 845.4 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 30 kW @ 11m/s / 24.6 mph |
Maximum Output Power | 33 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 360 Vdc |
System Output Voltage | 380 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 160 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.7 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 824 kg / 1816.6 lbs |
Generator Efficiency | >0.92 |
Wind Energy Utilizing Ratio | 0.42 Cp |
Energy monitoring & User control | Siemens PLC controller with touch screen |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Auto Yawing & Hydraulic Braking |
Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
Warranty | 2 years for generator and 1 year for other parts |
