Product Information

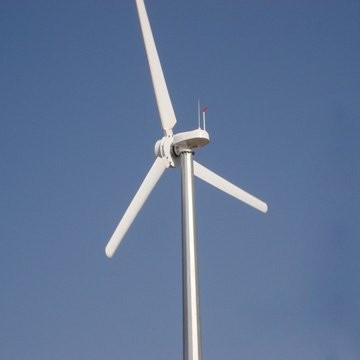

H10.0-30000W is a typical HUMMER smart Wind turbine , which with a series of high-end technologies and refined material, H10.0-30000W wind turbine is excellent in generation, stable in output and reliable in practice.

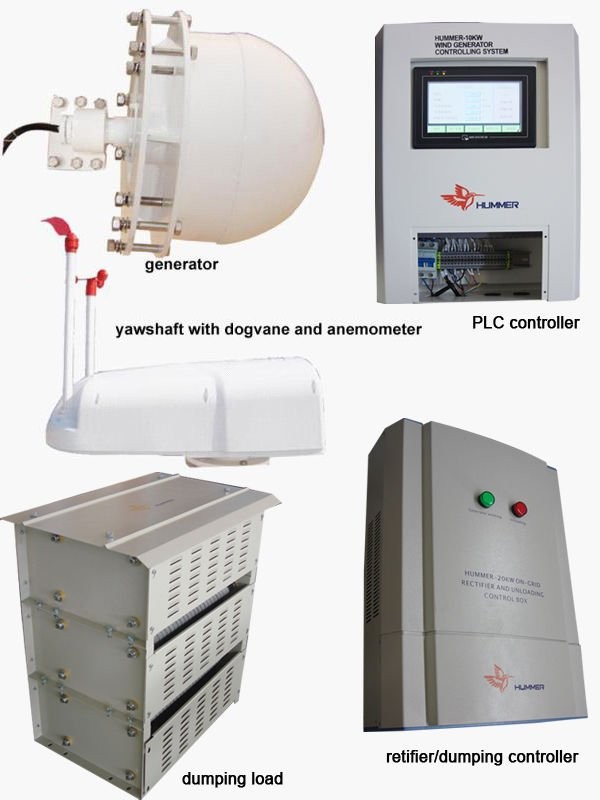

Efficient Generator
Hummer generator is one of the most advanced generators in the world. Made of refined permanent magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in generating power. Due to its smallness, it is able to be placed inside the nose cone to reduce air resistance and increase efficiency.
Due to its advanced technologies, refined materials and unique design, H10.0-30000W wind generator's wind energy utilization factor is as high as 0.42, while generator efficiency is >0.92.
Smart Control
H10.0-30000W wind turbine is controlled by a comprehensive smart system. Through our years of monitoring on wind turbine operation, we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor: generator working status, rotation speed,generator temperature, wind speed and direction etc. All data will be transmitted to control center.
When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction. After problem is released wind turbine will turn to face the wind direction again and resume generation.
H10.0-30000W wind turbine system, both off grid and grid tied are available.
Application of Model H10.0-30000W
It can drive air-condition ( ≤30 horsepower), 10kw water pump or other resistive appliances (≤30KW).
Well used in:
● Housing, factory and farm
● Telecommunication Station
● Monitoring Station (military, hydrology, observatory)
● Water-pumping Station
Main technical parameter
Rated power (W) | 30000 |
Maximum output power (W) | 45000 |
Charging voltage (V) | DC 360 |
Blade quantity | 3 |
Rotor blade material | GRP |
Rotor blade diameter (ft.) | 33 (10.0m) |
Start-up wind speed (mph) | 6 (2.5m/s) |
Rated wind speed (mph) | 25 (11.0m/s) |
Rated rotating rate (r/min) | 160 |
Wind energy utilizing ratio (Cp) | 0.42 |
Generator output | Frequency conversion AC |
Rated charging current (A) | 83 |
The maximum charging current (in a short time ) (A) | 125 |
Output AC frequency (Hz) | 0~400 |
Generator efficiency | >0.92 |
Free standing tower diameter (in.) | Φ47.2*Ø18.7 (Ø1200*Φ475mm) |
Tower height (ft.) | 59 (18m) |
The weight of generator (lb) | 1764 (800kg) |
Suggested Battery (Ah) | 600/1000 |
