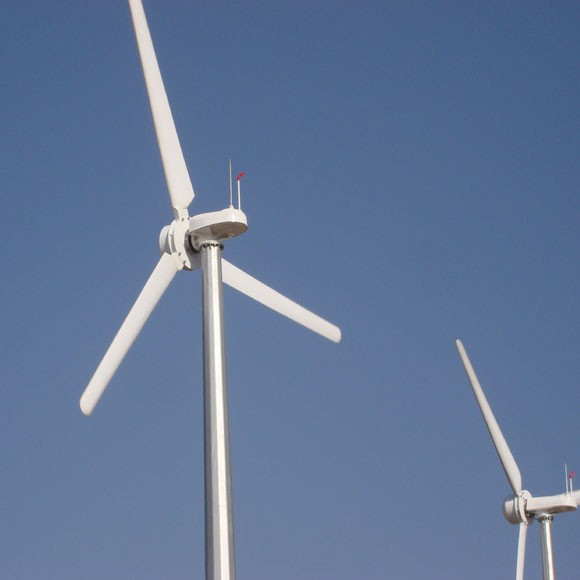

H10.0-30KW Grid Tied Wind Turbine

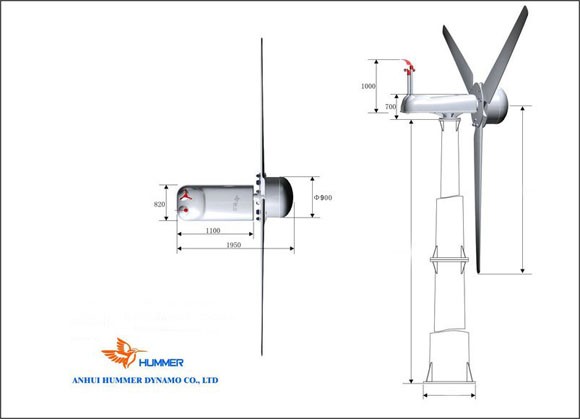

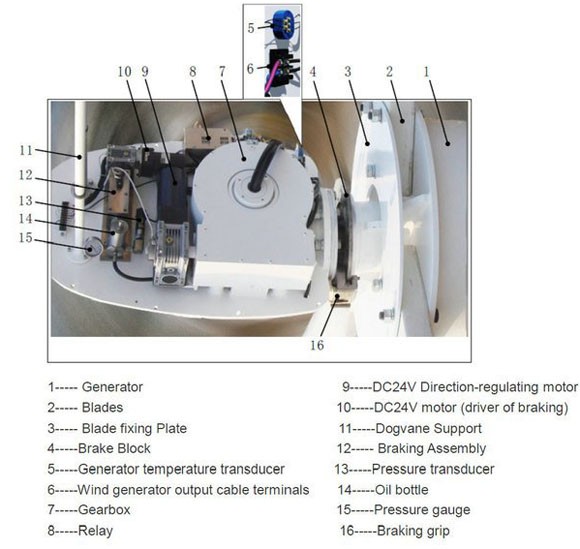

H10.0-30KW Grid Tied Wind Turbine Structure
Hummer manufactures and offers advanced H10.0-30KW Grid Tied Wind Turbine specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. The electricity from 30kw grid connected wind generator outputs to the
grid-tied inverter after being rectified. When the input DC voltage reaches up to the start-up
voltage,the inverter will merge into state grid. Our products are third party certified and during
the past 10 years, Hummer 30KW Home Wind Energy generator have been exported to 91
countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India,
Spain etc. For more information on 30KW Wind Turbine such as users manuals, data sheet,
PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
H10.0-30KW Grid Tied Wind Turbine curve
H10.0-30KW Grid Tied Wind Turbine Specifications
Configuration
3 Blades, Horizontal axis, Upwind
Rotor Diameter
Ф10.0 m / 32.8 ft
Swept Area
78.54 m2 / 845.4 ft2
Direction of Rotation
Clockwise looking upwind
Blade Material
Fiberglass reinforced composite
Rated Power
30 kW @ 11m/s / 24.6 mph
Maximum Output Power
33 kW @ 20m/s / 44.7 mph
Battery Bank Voltage
360 Vdc
System Output Voltage
380 Vac
Cut-in Wind Speed
3 m/s / 6.7 mph
Rated rotating rate
160 r/min
Working Wind Speed
3-25 m/s / 6.7-82.7 mph
Survival Wind Speed
50 m/s / 164 mph
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight
824 kg / 1816.6 lbs
Generator Efficiency
>0.92
Wind Energy Utilizing Ratio
0.42 Cp
Energy monitoring & User control
Siemens PLC controller with touch screen
Gearbox
None, Direct drive with front generator design
Over Speed Regulation
Auto Yawing & Hydraulic Braking
Shutting Down Method
Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty
2 years for generator and 1 year for other parts

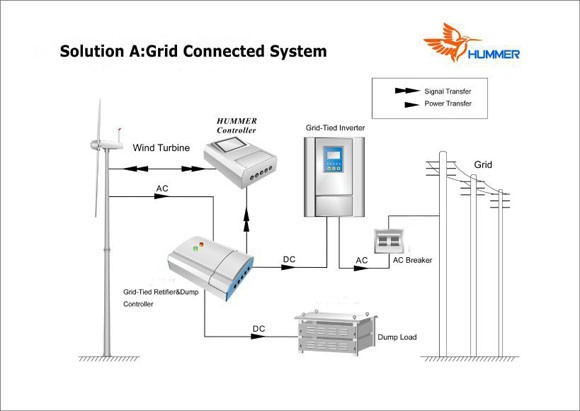

How H10.0-30KW Grid Tied Wind Turbine works
