20KW Generator in France



  • Products Visitors:5413
  • Product Name:20KW Generator in France
  • Package:11.897 CBM, 9 Packages

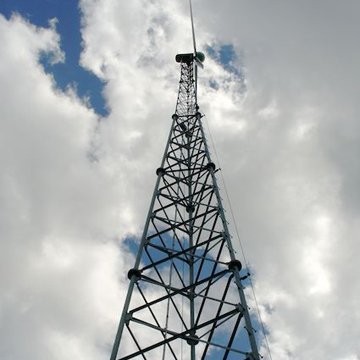

  • Size:16m free standing tower
  • Model:H9.0-20KW



Detailed Product Description

20KW Generator in France

1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professtional factory

20KW Generator in France

Application of Model H9.0-20000W wind power generator
It can drive air-condition ( <=20 horsepower), 6kw water pump or other resistive appliances (<=20KW).
Well used in:
 Housing and factory and farm
 Telecommunication Station
 TV Transfer Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station
 shipping

20KW Generator in France technical parameter
H9.0-20KW Generator in France Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф9.0 m / 29.5 ft
Swept Area 63.62 m2 / 684.7 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 20 kW @ 11m/s / 24.6 mph
Maximum Output Power 22 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 180 r/min
Working Wind Speed 3-25 m/s / 6.7-82.6  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 496 kg / 1093.5 lbs
Generator Efficiency >0.87
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
