Front Generator Wind Turbine

Detailed Product Description

wind generator equipment
1.Smaller.lighter.lower noise
2.Higher efficiency
3.Smart system
4.SCF technology&SKF bearings





wind generator equipment

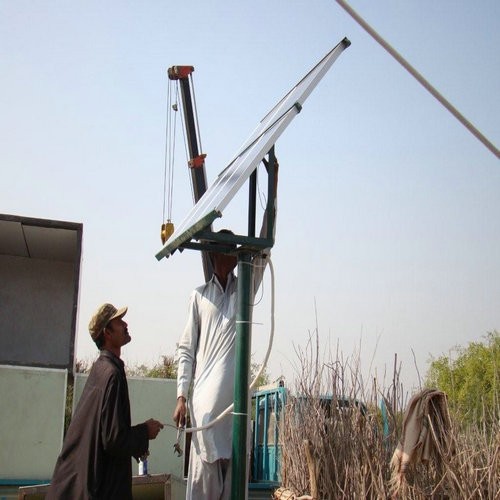

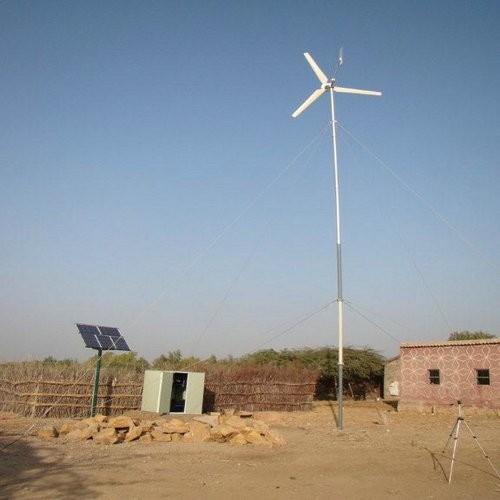

Hummer 2000w wind generator equipped with wind-solar hybrid

sine wave controller system . Our controller system are three-in -one

design with the functions of charging ,inverting and unloading .

Application of Model H3.80-2KW

It can drive air-condition ( ≤20 horsepower), 6kw water pump or other resistive appliances (≤20KW).

Well used in:

Housing and factory and farm

Telecommunication Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station

shipping

Hummer 2kw mini wind generator equipment has the following features :



A.The hummer wind power generator have low power consumption ,the structure is compact,friction ratio is low ,low in power wastage with 20% saved than the traditonal one.



B. Thanks to the light and small structure ,and the rotating speed can even be over 2 times than the rated rotating speed ,with the result of soundless ,safe and reliable .



C. Swift in start up ,2.0m/s 100% working



D. Swift in heating dispersion ,the generator is install installed inside the nose cone,which is favorable for het dispersion .



E. Swift in charing and power output



F. Reliable protection for over charging/Discharing /current /voltage/short circuit  and over speed /temperature etc .



G. Freely maintenance



Main technical data

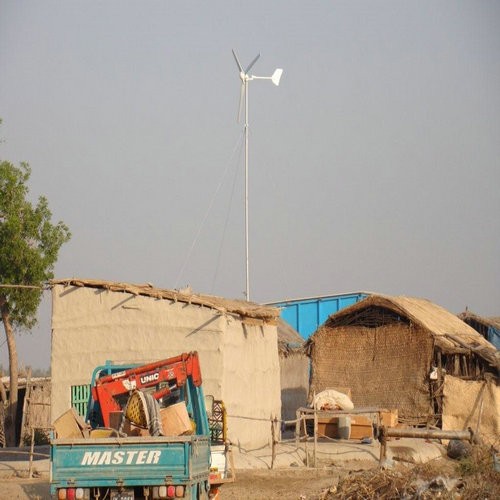

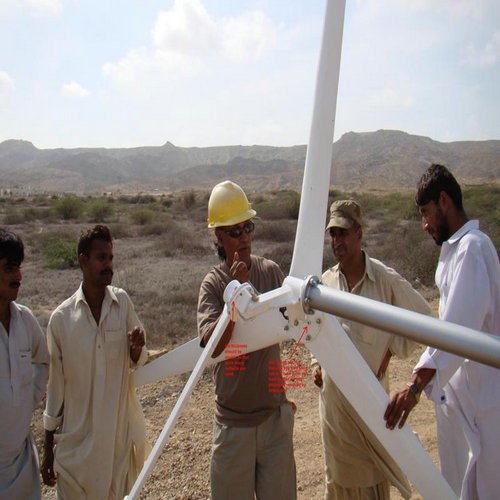

H3.8-2000W wind generator in Pakistan Specifications
Configuration	3 Blades, Horizontal axis, Upwind
Rotor Diameter	Ф3.8 m / 12.5 ft
Swept Area	11.35 m2 / 122.2 ft2
Direction of Rotation	Clockwise looking upwind
Blade Material	Fiberglass reinforced composite
Rated Power	2 kW @ 11m/s / 24.6 mph
Maximum Output Power	2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage	120 Vdc
System Output Voltage	110/220 Vac
Cut-in Wind Speed	3 m/s / 6.7 mph
Rated rotating rate	450 r/min
Working Wind Speed	3-25 m/s / 6.7-82.2  mph
Survival Wind Speed	50 m/s / 164 mph
Alternator	Permanent magnet alternator, SCF technology
Alternator Weight	25 kg / 55.1 lbs
Generator Efficiency	>0.80
Wind Energy Utilizing Ratio	0.45 Cp
Energy monitoring & User control	LED display
Gearbox	None, Direct drive with front generator design
Over Speed Regulation	Passive furling tail design
Shutting Down Method	Manual & Automatic electromagnetism Braking
Warranty	2 years for generator and 1 year for other parts
