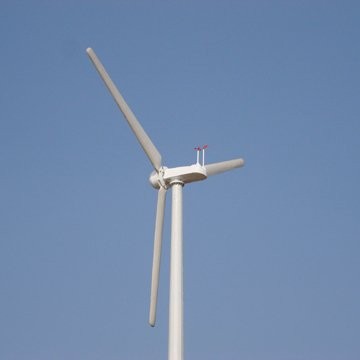

10000w excellent wind generator






Detailed Product Description


wind generator
1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professtional factory



wind generator

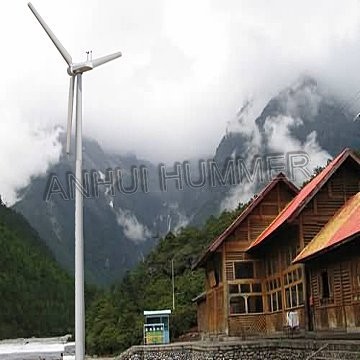

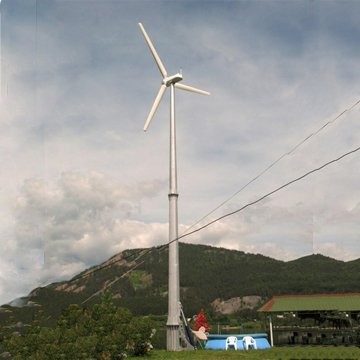

Application of Model H8.0-10000W wind generator

It can drive air-condition (8-10 horsepower), 3kw water pump or other resistive appliances (≤10KW)



Well used in:

 Housing and factory and farm
 Telecommunication Station
 TV Transfer Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station
 shipping


Main technical data

Rated power (W) 10000
Maximum output power (W) 15000
Charging voltage (V) DC 240
Blade quantity 3
Rotor blade material GRP
Rotor blade diameter (ft.) 26  (8.0m)
Start-up wind speed (mph) 7    (3.0m/s)
Rated wind speed (mph) 22   (10.0m/s)
Rated rotating rate (r/min) 200
Wind energy utilizing ratio (Cp) 0.40
Generator output Frequency conversion AC
Rated charging current (A) 41.7
The maximum charging current(in a short time)(A) 65
Output AC frequency (Hz) 0~280
Generator efficiency >0.85
Free standing tower diameter (in.) Ø35.4*Ø24.8  (Ø900*Ø630mm)
Tower height (ft.) 49    (15m)
The weight of generator (lb) 633  (287kg)
Suggested Battery (Ah) 600/800
