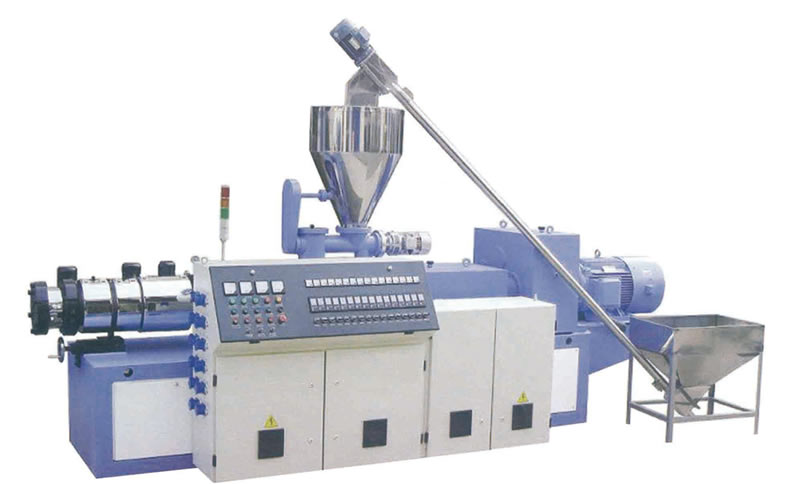

SJZ series conical twin screw extruder is a highly efficient agglomerating and extruding equipment.Machines of this series feature low shearing rate.uneasy degradation,even plastication and agglomeration,reliable quality,wide applica-tion range and long servicing life.Using PVC powder as raw material for a direct forming.the exturders perform an excel-lent effectiveness.These machinse have automatic temperature control,vacuum gas exhaustion,oilcooled screws,stepless speed regulation,as well as a forced feeding and self-cleaning mechanism.
Extruder,Conical Twin Screw Extruder,Twin Screw Extruder,double screw extruder,plastic extruder
Model |
Screw Dia (mm ) |
Screw speed (rpm) |
Length |
Motor |
Heater Power (kw) |
Max Output (kg/h) |
Dimension (mm) |
SJSZ-51/105 |
51/105 |
1-30 |
1200 |
18.5 |
18 |
120 |
3620*1050*2157 |
SJSZ-65/132 |
65/132 |
1-34.7 |
1440 |
37 |
24 |
250 |
4235*1520*2450 |
SJSZ-80/156 |
80/156 |
1-36.9 |
1800 |
55 |
36 |
400 |
4750*1550*2460 |
SJSZ-92/188 |
92/188 |
1-32.9 |
2500 |
90 |
45.4 |
700 |
6725*1550*2814 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
