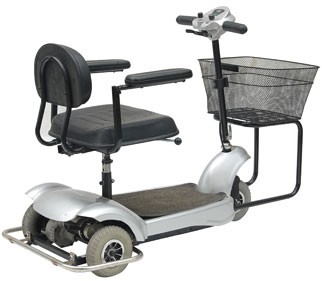

HS30 Mobility Scooter

Overall Dimensions:

1300x560x880 mm

Weight (with battery pack):

43 kg

Turning Radius:

0.838m

Rated Motor power:

180 W

Forward Speed:

Max. 6.4 km/h

Backward Speed:

Max. 3.2km/h

Max. Climbing slope:

12'

Range:

Up to 30km

Ground Clearance:

45mm

Carrying capacity:

125 kg

Standard Seat:

Foldable

Seat Width:

420 mm

Seat Height:

343mm

Seat Depth:

406 mm

Braking Distance:

1.0 m (Dry)

Drive System:

Rear-wheel Drive, Sealed mini Transaxle, 24 V DC Motor

Braking:

Electronic Regenerative and Electromagnetic

Battery Type:

12V/17 AH X2

Charger:

110-220V (AC), 24V/1.8 A (DC)

Wheel Size:

200x50 mm.
