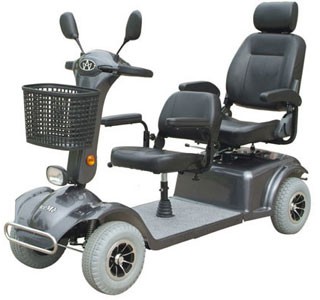

HJ60FL-D Mobility Scooter

HJ60FL-D

1 Body Color: Black
Overall Dimentions (LXWXH): 1740X690X1280 mm
Weight without battery: 92 kgs
Max Speed: 12 km /h
Turning Radius: 1.35 m
Max Climbing slope: 15 degree
Ground Clearance: 82 mm
Weight Capacity: 205 kgs
Motor Rated Power: 24V, 800W
Controller: 24V 120A
Battery Charger: 5A
Batteries: 2 PCS of 55AH
Battery Weight: 34.3 kgs ( for two PCS )
Braking System: Electric Regenerative Braking and hand brake
Front Tire: 12"X4.1" Pneumatic
Rear Tire: 12"X4.1" Pneumatic
Seat Type: Capital
Seat color available: Grey, black, camel
Seat Size (LXWXH ): Rear chair: 480X490X710 (780)mm
Front chair: 400X400X380 mm
Seat Weight: 20.2kgs (rear), 7kgs ( front)
Container packing: 28 PCS / 20 GP`, 54 PCS / 40 GP
