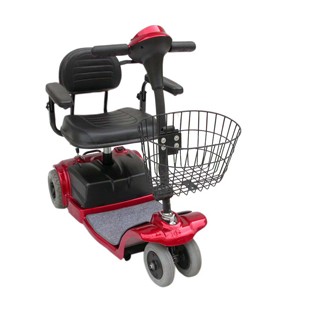

HJ30TL-S Mobility Scooter

Overall dimensions：

1050x483x900mm

Weight without battery pack:

78 lbs

Turning radius:

0.838m

Forward max speed:

6.4km/h

Backward max speed:

3.2km/h

Max climbing grade:

12 degree

Range:

up to 10 miles with 12Ah batteries

Ground clearance:

35mm

Carrying capacity:

115kg

Standard seat:

foldable

Seat dimensions:

420(W) x 343(H) x 406(D)mm

Seat material:

black vinyl

Drive system:

rear-wheel drive, sealed mini transaxle, 24V DCmotor

Dual braking system:

electronic, regenerative, and electromechanical

Tires:

tire size 4*8 inch

Wheel hub:

aluminum alloy

Battery Type:

2 x 12V, deep-cycle, AGM or Gel-cell

Battery weight:

9 lbs (each)

Battery rated capacity:

12Ah

Battery charger:

2 Amp off-board battery charger

90pcs/20'GP 200pcs/40'GP 240pcs/40'HQ
