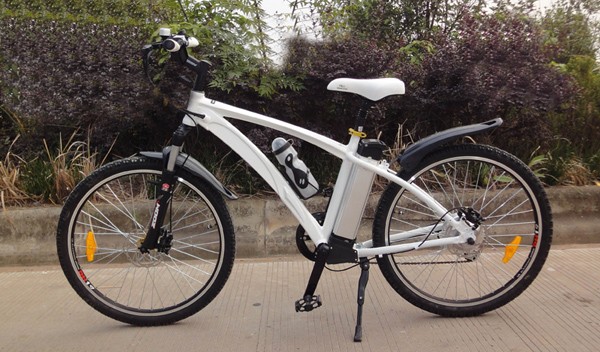

E-bike HEB506C

Components

Frame:

Al Alloy 6061 T6

Tyres:

26"×1.95", puncture resistant K-shield (KENDA or CST)

Rim:

Al Alloy twin wall and CNC side wal (ALEXRIMS)

Spokes:

13g stainless steel

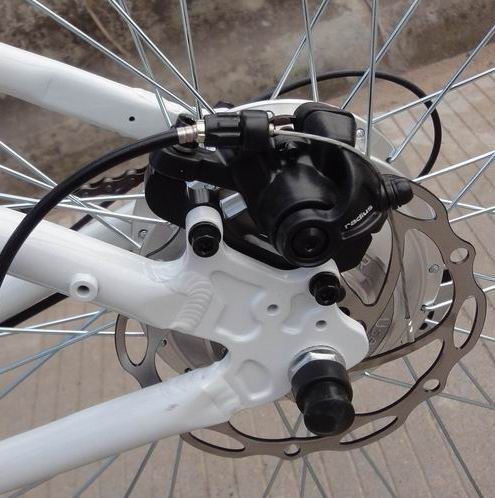

Brakes:

Front: Disc brakes, rear: Disc brakes (C-Star)

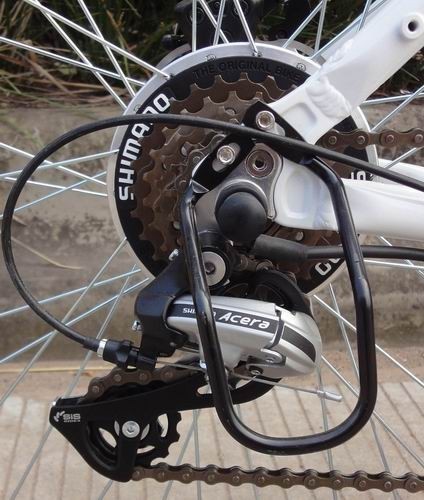

Gears:

SHIMANO 7 speed gears (Acera)

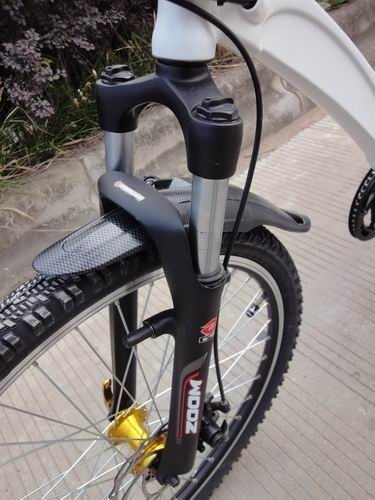

Front fork::

Suspension, Al alloy double crown(ZOOM)

Handle bars:

Al Alloy (ZOOM)

Head set::

Water proof headset (Neco)

Chainguard:

-

Mudguard:

pp

Chainwheel :

Steel 44 T, Al alloy crank

Chain:

Rust resistant chain (PYC)

Stander:

stander (GS)

Rear carrier:

-

Saddle :

GEL Cruiser saddle

Seat Post :

Al alloy with suspension(ZOOM)

Electric System

Motor:

180-350wHigh Speed Brushless Gear DC hub motor  (8FUN)

multi-functional display(PAS)
With 3 selection mode for speed

Controller:

Intelligent brushless controller (Yuanlang)

Pedaling Run/Pedaling-Electric Assist Run

Option: Pure Electric Run Model

Overload protection ,Low voltage protection

Battery :

Option: 24V 10Ah / 36V 10Ah/36V 16Ah Li-ion battery

Charger :

100-240V 50-60HZ,1.8 amps smart charger. Charge time 4-6 hours

Performance

Maximum  Speed :

≤25Km/h

Range:

Pedaling-Electric mode 55-60km

120Km with 36V 16AH battery

Load capacity:

100KG

Weight:

Li-ion battery 3.8 kgs (36v 10ah)

N.W./G.W. :

23/28 kgs (without battery)

Carton Size :

1400X275X740 mm

Capability :

88pcs/20'   148pcs/40'   190pcs/40' HQ
