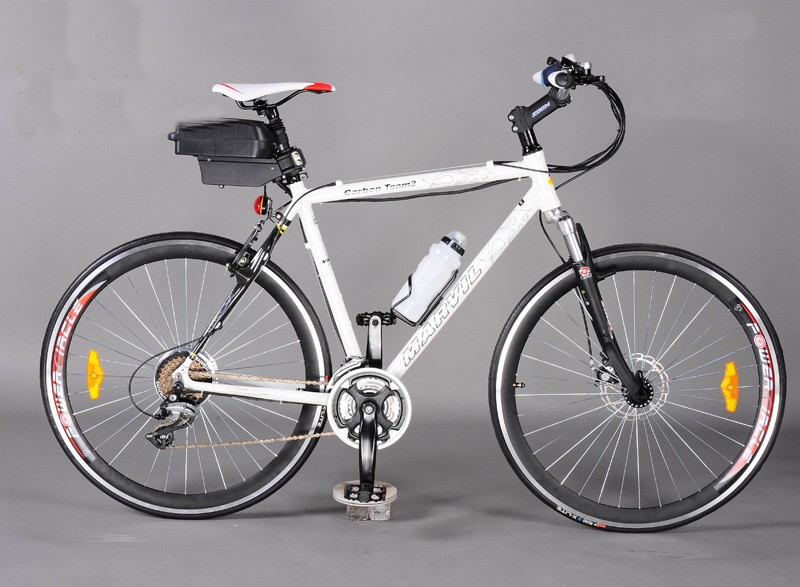

E-bike HEB503A

Components

Frame:

Al Alloy 6061 T6

Tyres:

700X2.0C, (KENDA or CST)

Rim:

700X1.0'',Al Alloy twin wall and CNC side wal

Spokes:

13g steel

Brakes:

Front: Disc brakes, rear: V brakes (C-Star)

Gears:

Rear SHIMANO 7 speed gears front 3 speed gears

Front fork::

Al alloy double crown(ZOOM)

Handle bars:

Al Alloy (ZOOM)

Head set::

Water proof headset (neco)

Chainguard:

-

Mudguard:

-

Chainwheel :

Steel 44 T, Al alloy crank

Chain:

Rust resistant chain (PYC)

Stander:

-

Rear carrier:

-

Saddle :

GEL Cruiser saddle

Seat Post :

Al alloy with suspension(ZOOM)

Electric System

Motor:

180-350wHigh Speed Brushless Gear DC hub motor  (8FUN)

200W High Speed Brushless Gear DC hub motor for Australia

Controller:

Intelligent brushless controller (Yuanlang)

Pedaling Run/Pedaling-Electric Assist Run

Option: Pure Electric Run Model

Overload protection ,Low voltage protection

Battery :

Option: 24V 9Ah / 36V 9Ah Li-ion battery

Charger :

100-240V 50-60HZ,1.8 amps smart charger. Charge time 4-6 hours

Performance

Maximum  Speed :

≤25Km/h

Range:

e-bike mode 32-35km,

Pedaling-Electric mode 50-55km

Load capacity:

100KG

Weight:

Li-ion battery 2.1 kgs (24v 10ah)

N.W./G.W. :

13/18 kgs (without battery)

Carton Size :

1400X275X740 mm

Capability :

88pcs/20'   148pcs/40'   190pcs/40' HQ
