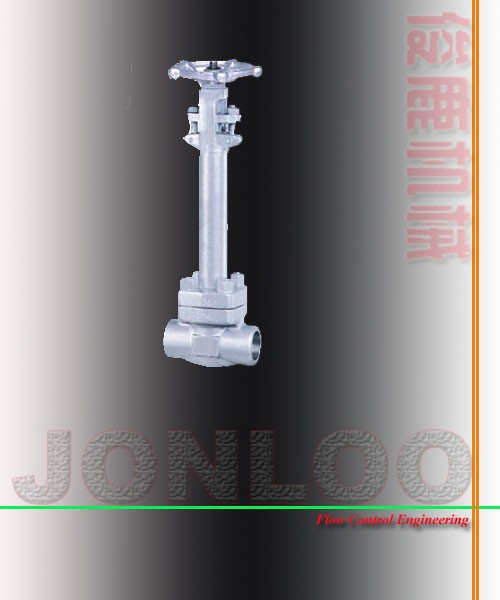

Cryogenic globe valve conforms to API602, MSS-SP-118 and BS6364. It is tested according to API698, and marking is per MSS SP-25.
Size: NPS3/8''-2''
Construction is as follows:
Full port or conventional port
Two piece self-aligning packing gland
Bolted bonnet with spiral-wound gasket or threaded and seal welded bonnet
Integral backseat
Socket weld ends to SASME B16.11
ANSI/ANNE B1.20.1
Special extension lengths on request
Soft seats for globe valves on request
Stem packing on request
Special low temperature testing on request
Outside screw and yoke
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
