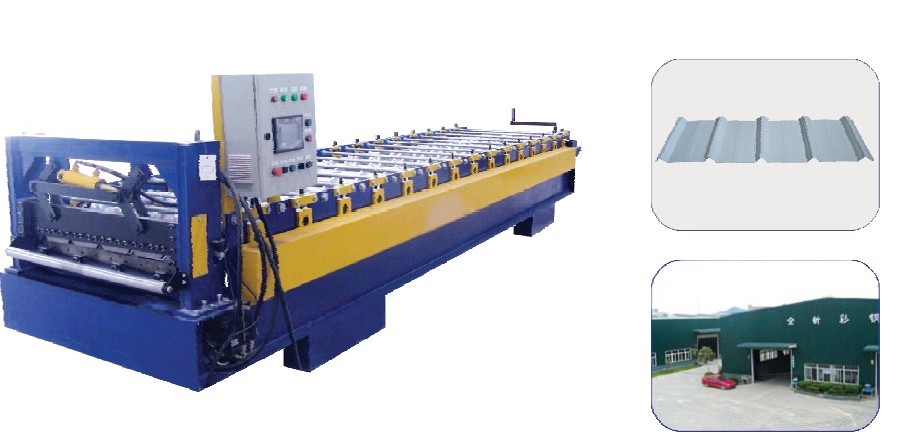

YX25-210-840&1050 Roof&Wall Roll Forming Machine Particular Info
1.Product Description:
The product produced by these series machine is used for roof or wall in building. With this product for roof and wall, it is with the advantage of lower cost, soon fixture and uneasy damageed, This series product is suitable for streel structure factory, store and public big building. It is common used in different ranges.
2.Main Technical Parameters:
Technical Parameter |
Description |
Material Thickness |
0.3-0.8mm |
Material Width |
1000/1219mm |
Effective Width |
840/1050mm |
Forming Station |
15 steps |
Motor power |
5.5Kw |
Weight |
5000KG |
3.Whole Producing Line Component:
1) 5tons decoiler
2) Roll forming machine
3) Hydraulic cutting device
4) Product rack for collecting products
5) PLC control box
