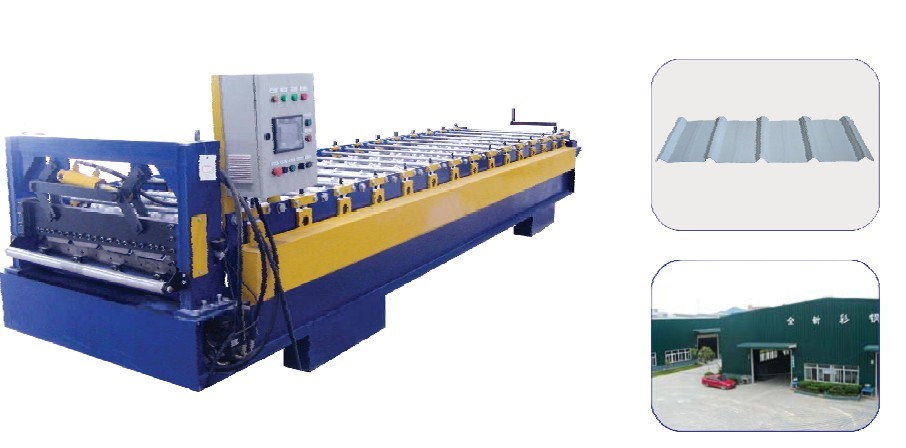

YX22-265-1060 Roof roll forming line

1.Product Description:

This roof roll forming machine is for roll forming 550MPa high tension grade material. It is popular used in Philippines and also in Asia. With this product for roof and wall, it is with the advantage of lower cost, soon fixture and uneasy damaged, This series product is suitable for steel structure factory, store and public big building. It is common used in different ranges.

 2.Main Technical Parameters:

 3.Whole Producing Line Component:

1)     5tons decoiler
2)     Roll forming machine Feeding section with guide; Gear/Sprocket driving；    Rollers manufactured from 45 # steel, CNC lathes, hard Chrome Coated Shafts Diameter=ф75mm, Precision Machined
 3)     Hydraulic cutting device Cutting tool material: Cr12, Heat treatment
 4)     Product rack for collecting products
 5)     PLC control box Control the cutting length & quantity automatically; Combined with：PLC, inverter, Touch Screen, Encoder, etc
