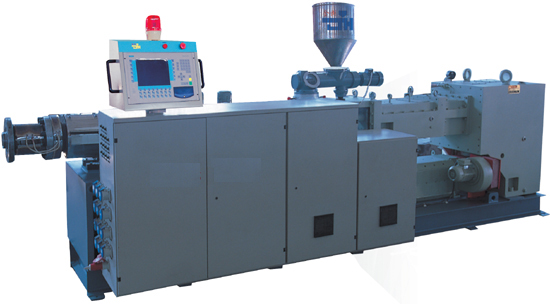

Model SJP series twin parallel screws extruder is a kind of special equipment for extruding of PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.

The screw has applied oil cooling system. Cylinder is cooled by special wind cooling system. The control system has applied special computer control. According to customers requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality. The screw is made by high precision special digital screw miller, extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut. The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure. The electrical system has mainly applied imported parts, it has multiple alarm system, there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be 1degree Celsius.

Main Technical Parameter

Items SJP 90/23A SJP 90/23B SJP 90/23C SJP 105/23A SJP 105/23B SJP 113/23A SJP 113/23B SJP 120/23 SJP 130/23 Screw diameter(mm) 90 90 90 105 105 113 113 120 130 Screw quantity 2 2 2 2 2 2 2 2 2 Screw rotating speed(rpm) 1-45 1-30 1-30 1-45 1-30 1-45 1-30 1-30 1-45 Effective length of screw(mm) 2070 2070 2070 2415 2415 2599 2599 2990 2990 Power of Main engine(kw) 55 37 37 90 55 110 75 110 160 Barrel heating power(kw) 30 30 30 35 35 42 42 42 50 Production capacity(kg/h) 400 300 300 550 400 700 500 800 1000 Rotating direction                 Screw rotation direction Center height(mm)     1000   1150     1250 1320 Marks For pipe For profile Without PLC controller For pipe For profile For pipe For profile For pipe For pipe
