Product Name: HDPE Water and Gas Pipe Machine
Product Description:

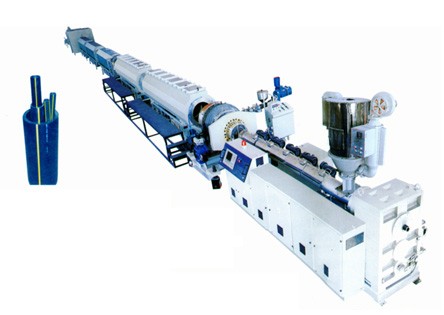

Large Diameter HDPE Water Supply And Gas Supply Pipe Extusion Line

Application: With this production line you can extrude high quality large diameter water supply and gas supply pipes.
The pipes produced by our line have excellent stiffness and flexibility, resistance to creep deformation, excellent heat-linkage. Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Properties and Advantages: The production line consists of control system, extruder, mould, calibration unit, haul-off unit, planetary cutter and stacker.

Downstream equipment: This line is assembled lattice or spiral mould, new type calibration unit and spraying cooling bath. Advanmced PLC control system and large chromal liquid-crystal screen make the operation more convenient, having a friendly human-machine interface.

Type Pipe range(mm) Output max (kg/h) Total power L*W*H (m)
SDPE-250 110-250 350 230 44*2.5*3
SDPE-400 160-400 600 400 45*3*3.5
SDPE-630 315-630 800 490 56*3*3.5
SDPE-800 500-800 1000 650 58*3.5*3.5
SDPE-1000 630-1000 1200 760 62*3.5*3.5
SDPE-1400 800-1400 1500 820 57*4*4
