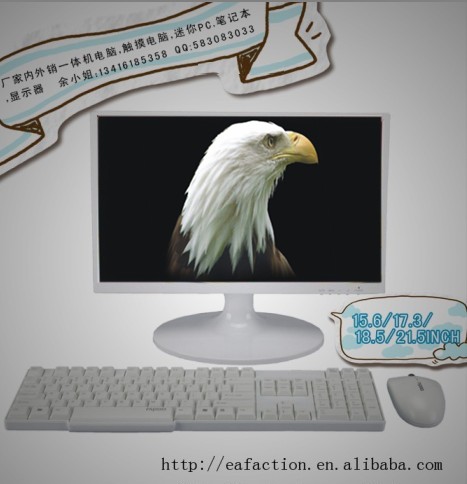

Trademark    ALL IN ONE PC

(According to customer requirements and OEM Including the boot screen printing, box etc)

Model

EFD1730/1850

EFN1730/1850

EFU1730/1850

Display

17.3INCH : 1600X900@60HZ,

18.5/21.5 inch: 1980X1080@60HZ

CPU

EFD1730/1850/2150

Intel Diamondville Single Core Processor N270,N280
1.6Ghz@133MHz FSB 2.5W(Atom Processor)
437-pin FCBGA8

EFN1730/1850/2150

Intel N450 FSB667 1.66GHz/512K/Single Core /2

EFU1730/1850/2150

Mobile DualCore Intel Celeron M SC/DC ULV Processor Genuine Intel(R)

Caching L2: 1MB (on-Die,Asc,Full-Speed)

GS45/GS40 + ICH9M-SFF_Enhanced

Graphics Card

EFD1730/1850/2150

Mobile Intel 82945GSE
Support 533MHz FSB

EFN1730/1850/2150

Intel GMA 3150 or NV discrete graphic N11x (Option)

EFU1730/1850/2150

Intel GMA3100/ Intel GMA 4500MHD

CHIPSET

EFD1730/1850/2150

Mobile Intel(R) 945 Express Chipset Family

EFN1730/1850/2150

IntelNM10 Express Chipset

EFU1730/1850/2150

GS45/GS40 + ICH9M-SFF_Enhanced
Support 533/ 667/800 MHz FSB

Memory

 DDR2 667/800MHz  1G/2G

HDD

160G/250G/ 320G

Wireless LAN Card

Support802.11b/g(54Mbps)Wireless Protocol  (no

standard,Option)

System

WINXP/win7

Video Out Put

1* VGA

Audio system

Build-in  Stereo

Network connection

10M-100Mbps Ethernet Controller

Standard Interface

3*USB /1*RJ45/1*Audio Input ,Output /1*DC

Reader

4-in-1 card  reader, SD/MMC/MS/MS Pro

SIM FOR 3G system

Color

White / Black

SIZE

46.5*11*36cm

Weight

1.8Kg(monitor)

OTHERS

Wireless keyboard and mouse
