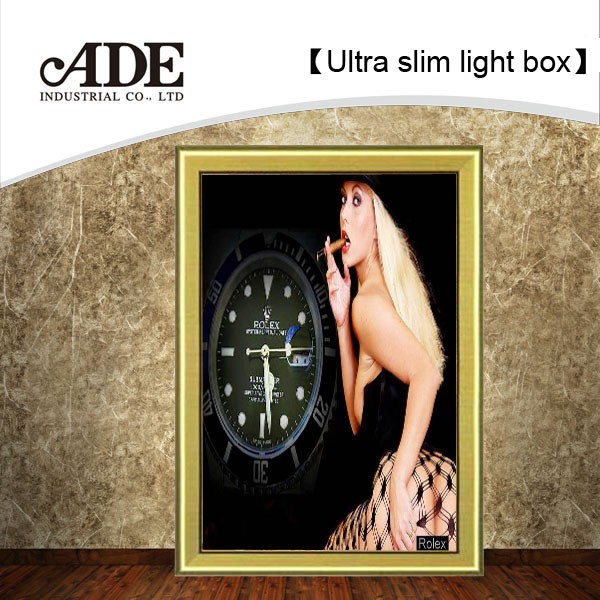

Product name | Ultra slim light box display |
Material |
High quality guide plate.the global aluminum, acrylic sheets, PP hollow backboard, national standard accessories. |
Color of frame | Flashing silver, black (other color you can customize) |
Composite structure |
Connect on 45 degree, four-side clips open, the cover of frame is 60mm, thickness is 42mm. |
Specification | It can customized within 1300*2500 MM |
Certification | CE, CCC, UL,ROHS, ISO9001,2008. |
Conservation standard |
It can saving 70% than traditional angle iron , accord with environmental protection safety requirements |
Voltage | 110-220V Stable ballast |
Light source | T4\T5 high-class energy saving flourescent tube |
Life span |
If the outer frame without damage , the normal life up to 5 years. |
Installation |
Open the frame, a few seconds can be change other graphic. |
Light configuration | The light configuration can also use LED lamp. |
Applications |
Widely used in business center, chain stores, supermarket, airport,railway stations, subway, wharf and so on. |
Product type | Model | Size (W*L*D) | Power | Light source configuration |
Four-sided aluminium open |
LT4060 | 400 × 600 × 28 | 40W | Energy saving fluorescent lamp |
LT5070 | 500 × 700 × 28 | 44 W | Energy saving fluorescent lamp |
|
LT6080 | 600 × 800 × 28 | 44W | Energy saving fluorescent lamp |
|
LT6090 | 600 × 900 × 28 | 48 W | Energy saving fluorescent lamp |
|
LT8012 | 800 × 1200 × 28 | 56 W | Energy saving fluorescent lamp |
|
LT1015 | 1000 ×1500 × 28 | 70 W | Energy saving fluorescent lamp |
|
LT1218 | 1200 ×1800 × 28 | 96 W | Energy saving fluorescent lamp |
|
LT1325 | 1300 ×2500 × 28 | 112 W | Energy saving fluorescent lamp |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
