1. fpv system
2. 1/3 inch Optical Format
Features:

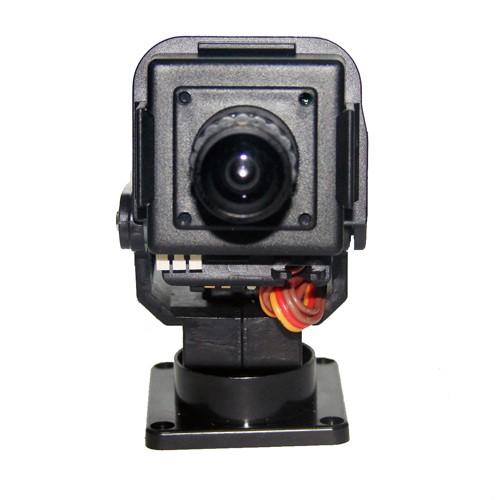

This camera is specially designed to use with Pan & Tilt SKU FPVYT2, also the wire/connectors supplied with this camera can directly plug and connect to the video transmitting/receiving system we sell.
| optical format CCD | 1/3" Sony color CCD | ||||
| Horizontal resolution | 600 TV line | ||||
| minimum illumination | 0.5 Lux | ||||
| Resolution | PAL : 752(H) x 582(V) 440K / NTSC :768(H) x 492(V) 380K | ||||
| scan system | CCIR: 625 Lines, 50 Field/Sec | ||||
| synchronous system | inter-sync | ||||
| Vedio output | 1Vp-p 75 Oms , Negative | ||||
| colour balance | Auto | ||||
| S/N Ratio | above 46dB | ||||
| Gamma Characteristic | 0.45 | ||||
| electronic shutter | CCIR : 1/50~1/100,000 Sec | ||||
| Power consumption | 12V±10%DC, 100mA | ||||
| Operating Temp. | -10°C ~ + 50°C, RH 95% Max | ||||
| storage temperature | -20°C ~ + 60°C, RH 95% Max | ||||
| dimensions | 28*28MM | ||||
