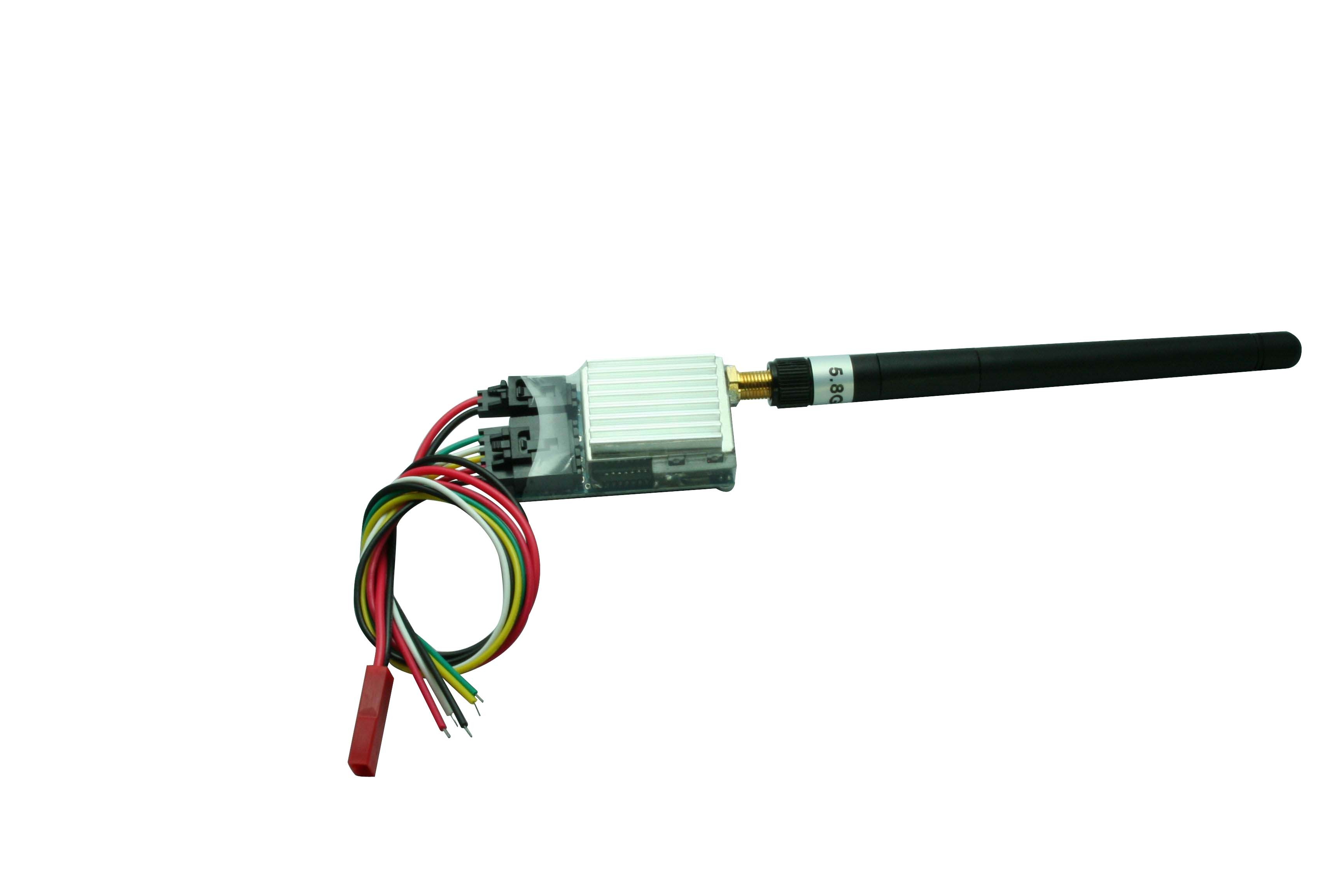

5.8G 500mW AV wireless transmitter TX58500

Feature of 5.8G 500mW AV wireless transmitter:
5.8G 8ch transmitter
With channel button to change channels easily
Channel memory function for power-off



Specificaiton:
Transmitter frequency: 5725-5865MHz; 8CH
Transmitting Power: 500mW/27dBm
Transmitting distance: > 2000m(open area)
Frequency control: built-in frequency and phase lock loop
AV input: analog AV signal input
ANT connector: SMA(inside the needle)
power supply: 6.5-15 volts
Current supply: 200mA
Size: 57*27.2*12mm
Net weight: 16g(no cable and antenna)

Remark:
The transmitter' s power input is ranging from 7-12V, however the voltage outptu from the TX for the camera us 0.5V, lower than the input power. It' s suggested to use 3S lipo 11.1V battery.

Note: antennas must be attched before powering on.
