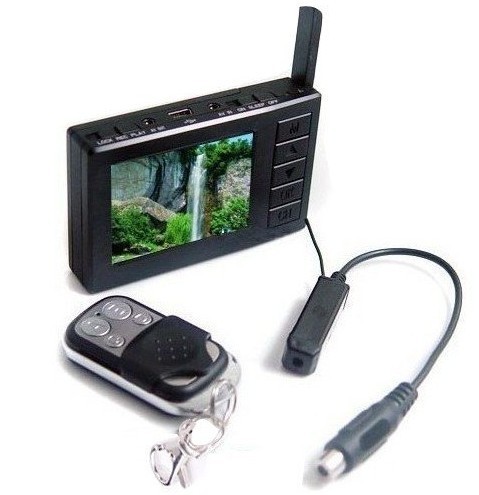

Features of 2.4G/5.8G wireless receiver DVR and pinhole camera kit

DVR01+CM24050



Multi-channel Receiver and cam era;
380 TVL of horizontal definition.
Micro-camera easy for installation.
Camera adjustable b manual for the frequency.
8Channel wireless baby monitor with portable DVR function;
100-150m transmission distance without block.
Audio monitoring with microphone in camera.

Receiving& transmitter frquency: 2370-2510Mhz(2.4G)

DIY installation.



Specifications of 2.4G/5.8G  Wireless DVR01

2.4 inch TFT LCD;

Receiving frequency: 2370-2510MHz()2.4G)/5725-5865MHz(5.8G)

Support 16GB micro-SD card(max);
Motion detection& remote controlling record;
Timing record;
640H0× 240VXRGB video / 30FPS;
Vibration Notice;
Rewrite when memory full;
1~16GB Micro-SD expand;
Time& Date stamp;
Keypad lock available;
Supports windows 98/2000/XP/Vista system;
Recording while power charge.
Dimension: 85*54*17mm

 Camera CM24050:
TV System: PAL NTSC
Transmitting output power: 50mW(17dBm)
Wireless transmitting distance: no stumbling block ＞400metres
Image pixel: 628*582
Camera lens: pinhole lens

Angular Field of View 55° (f=6mm)
Power supply voltage: 5V
Supply current: 200mA
Dimension: 10.6*10.6*38mm(30g)
