Zhejiang DK Valve Co.,Ltd

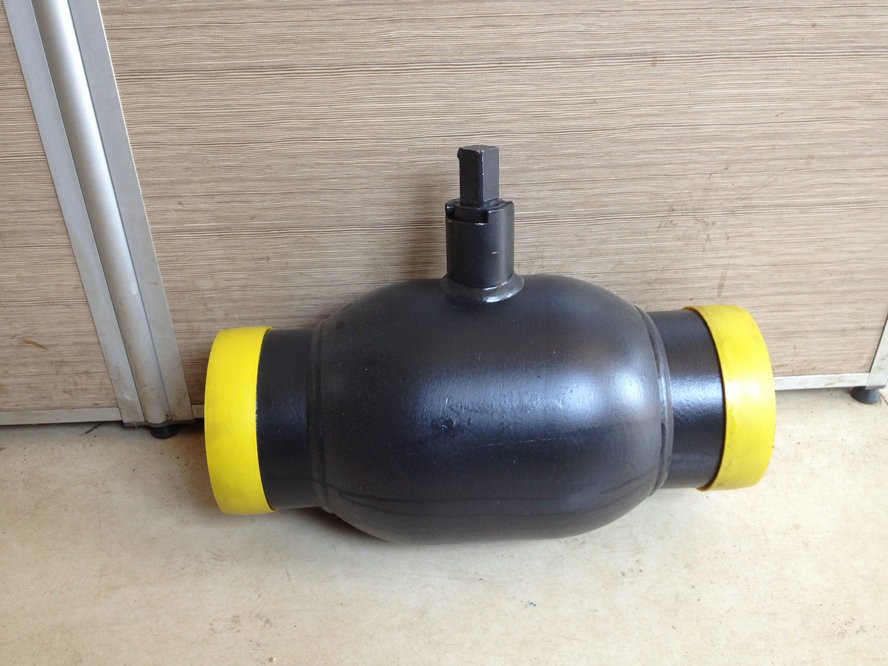

Model: DKFWBV003
Description
1) Material: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M
2) Class: 1.6-6.4Mpa
3) Size: DN15~DN600
4) Test: API598
5) Operator: hand wheel, gear, electric actuator
Benefits
1) International Certifications and Standards
2) Designed for use with district heating network, heat transfer piping, oil pipelines and gas industry application
3) Same lifetime as the pipeline system
4) Maintenance-free, no adjustment or lubrication with low running cost
Specification:
NO. |
PARTS |
MATERIAL |
1 |
BODY |
ST35.8 |
2 |
STEAM CAVITY |
ST35.8 |
3 |
BALL |
SS304 |
4 |
STEM |
SS304 |
5 |
SEAL RING |
PTFE+20%C |
6 |
WING GASKETS |
65MN |
7 |
HANDLE |
WCB |
8 |
O-RING |
FPM |
9 |
SLEEVE |
PTFE |
Main Performance & Technical Parameter:
1 |
Norminal Pressure |
1.6-6.4Mpa |
2 |
Working Temp. |
-40℃-+220℃ |
3 |
Test Standard |
API598 |
Inner packing: Plastic package
Outer packing: Wooden package
