Product Name |

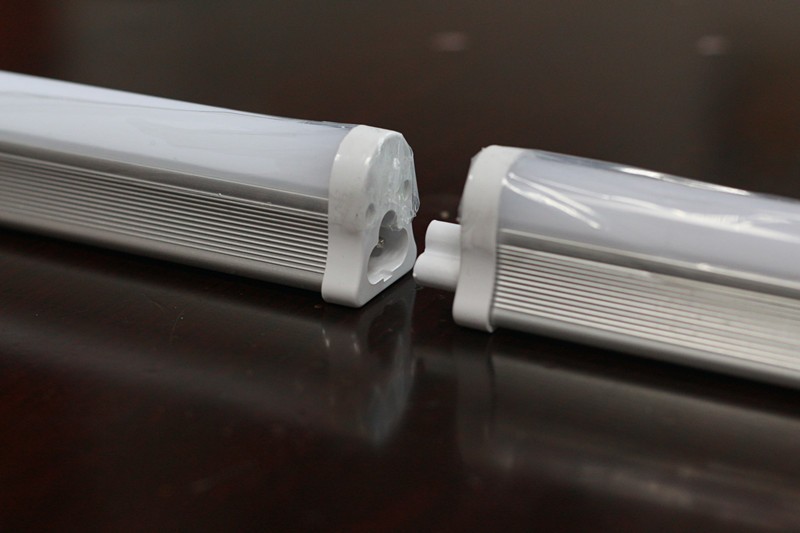

T5 Integrated LED Tube |
|
Power |
4W / 8W / 12W / 16W |
|
LED Type |
SMD3014 |
|
Input Voltage |
AC85-265V 50/60Hz |
|
CRI |
Ra70 |
|
CCT |
2800-3200K / 4000-4750K / 5500-6500K |
|
Beam Angle |
120° |
|
Material |
PC Cover + Aluminum Tube + Aluminum PCB |
|
Features |
Inside constant-current led power supply design |
|
Applications |
Widely Used in shelf lighting, mall lighting, comercial lighting and etc |
This product meets the standard of CE certification.

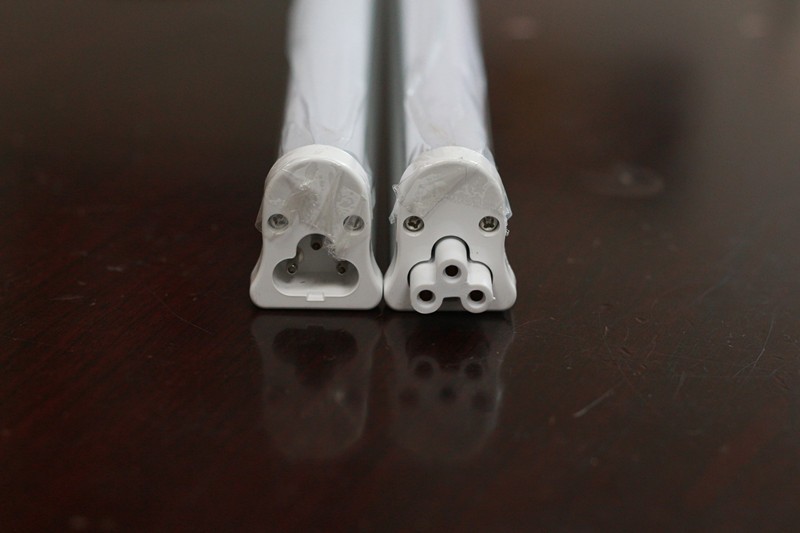

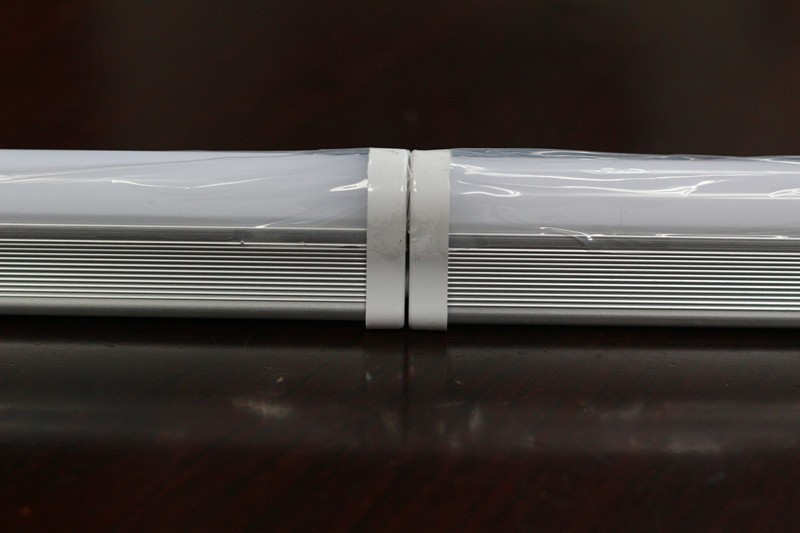

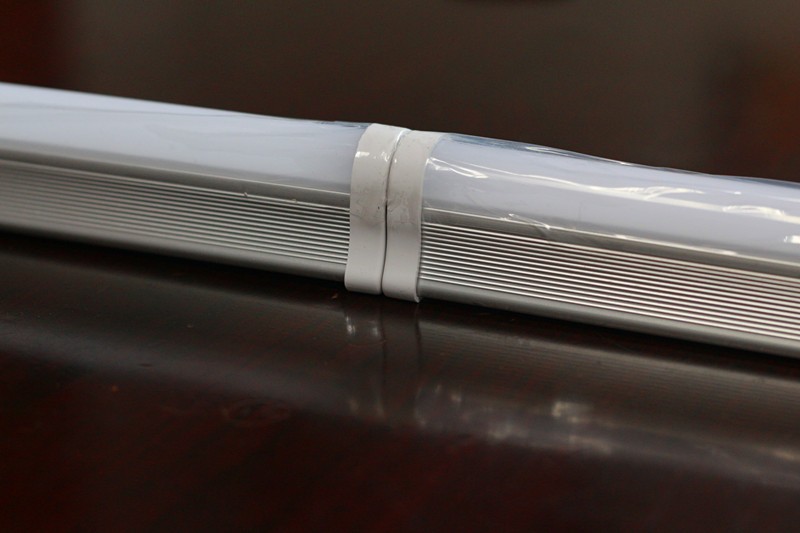

Inside constant-current led power supply design, multiple T5 led tubes can be connected by the special connector.
Use the most mature international well-known LED SMD3014 as the light source,which can ensure the led tube brightness and long lifetime, also can reduce the light decay.
Use the high quality aluminum PCB for LED’s better heat dissipation.
High-grade PC cover with nice light transmittance(> 95%),Transparent PC cover and frosted PC cover are available. Wide beam angle makes the lighting effect better.
CRI(standard products)>70,it can be over 80 if required.
Ambient temperature:-20℃-40℃, surface temperature:42℃-45℃
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation,no frequency flash, instant startup,no hurting eyes.
Product Dimension:
|
Standard Length |
Dimension(mm) |
||
|
A(max) |
B(max) |
C(max) |
|
|
300 |
300 |
28 |
14 |
|
600 |
573 |
||
|
900 |
890 |
||
|
1200 |
1183 |
||
