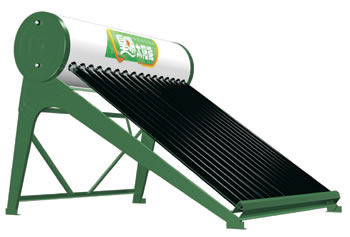

Description of Solar Water Heater HMSD180:
Himin brand solar water heater HMSD180 can be equipped with intelligentized control system, ISV automatic control valve, SED auxiliary heating system to supply hot water automatically.
Technical parameters of Solar Water Heater HMSD180:
| Model | Vacuum tube diameter (mm) |
Vacuum tube length(mm) | Vacuum tube quantity | Heat collecting area (㎡) |
Volume(L) | Gross weight (kg) |
Dimension (mm) |
| QBJ1-140/1.82/0-B | φ58 | 1800 | 14 | 1.82 | 140 | 255 | 36°:1276x2040x1508 |
| 42°:1276x1732x1262 | |||||||
| 50°:1276x1585x1880 | |||||||
| QBJI-160/2.09/0-B | φ58 | 1800 | 16 | 2.09 | 160 | 290 | 36°:1436x2040x1508 |
| 42°: 1436x1732x1262 | |||||||
| 50°: 1436x1585x1880 | |||||||
| QBJI-180/2.36/0-B | φ58 | 1800 | 18 | 2.36 | 180 | 320 | 36°:1596x2040x1508 |
| 42°: 1596x1732x1262 | |||||||
| 50°: 1596x1585x1880 | |||||||
| QBJI-200/2.62/0-B | φ58 | 1800 | 20 | 2.62 | 200 | 365 | 36°:1756x2040x1508 |
| 42°: 1756x1732x1262 | |||||||
| 50°: 1756x1585x1880 |
