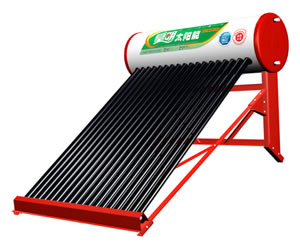

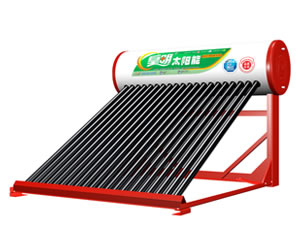

Description of Solar Water Heater HMJK180:
Himin brand solar water heater HMJK180 has passed the China Compulsory Certification and is equipped with SED auxiliary heating system, which makes the solar heating system be free of electric leakage, corrosion, extra heating, etc. Customers can use our solar water heaters without safety worry.
Technical parameters of Solar Water Heater HMJK180:
| Model | Vacuum tube diameter (mm) |
Vacuum tube length(mm) | Vacuum tube quantity(pcs) | Heat collecting area (㎡) |
Volume (L) |
Dimension (mm) |
| QBJ1-105/1.60/0 | Φ47 | 1800 | 14 | 1.60 | 105 | 33°:1110x1775x1349 |
| 42°:1110x1775x1222 | ||||||
| 50°:1110x1775x1775 | ||||||
| QBJI-120/1.83/0 | Φ47 | 1800 | 16 | 1.83 | 120 | 33°:1250x1775x1349 |
| 42°:1250x1732x1222 | ||||||
| 50°:1250x1396x1775 | ||||||
| QBJI-135/2.06/0 | Φ47 | 1800 | 18 | 2.06 | 135 | 33°:1390x1775x1349 |
| 42°:1390x1732x1222 | ||||||
| 50°:1390x1396x1775 | ||||||
| QBJI-150/2.29/0 | Φ47 | 1800 | 20 | 2.29 | 150 | 33°:1530x1775x1349 |
| 42°:1530x1732x1222 | ||||||
| 50°:1530x1396x1775 |
